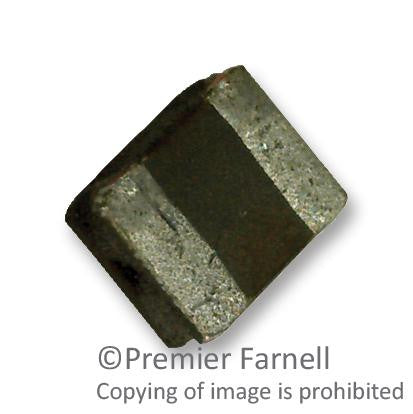

This is a Surface Mount Power Inductor, VLS-HBX-1 Series, 4.7 µH, 1.29 A, 1.37 A, Shielded, 0.312 ohm product from TDK with the model number VLS201612HBX-4R7M-1
Product details
| Product Range |
VLS-HBX-1 Series |
| Inductance |
4.7µH |
| RMS Current (Irms) |
1.29A |
| Saturation Current (Isat) |
1.37A |
| Inductor Construction |
Shielded |
| DC Resistance Max |
0.312ohm |
| Power Inductor Case |
2mm x 1.6mm x 1.2mm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
TDK |
| Part Number |
VLS201612HBX-4R7M-1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
