| ₹ 93.14 includes GST and import duties. | |
| B2B customers can avail ₹ 14.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

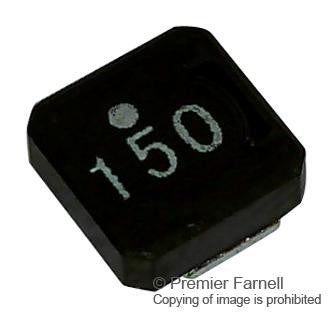

This is a Surface Mount Power Inductor, VLCF Series, 22 µH, 1 A, 750 mA, Wirewound, 0.496 ohm product from TDK with the model number VLCF5020T-220MR75-1
Product details
| Product Range | VLCF Series |
| Inductance | 22µH |
| RMS Current (Irms) | 1A |
| Saturation Current (Isat) | 750mA |
| Inductor Construction | Wirewound |
| DC Resistance Max | 0.496ohm |
| Power Inductor Case | 5.3mm x 5mm x 2mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | TDK |
| Part Number | VLCF5020T-220MR75-1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 91.28 |
| 3-5 | ₹ 90.35 |
| 5-10 | ₹ 88.48 |
| 10+ | ₹ 86.62 |
Bulk discount will be automatically applied during checkout based on quantity.
