Description

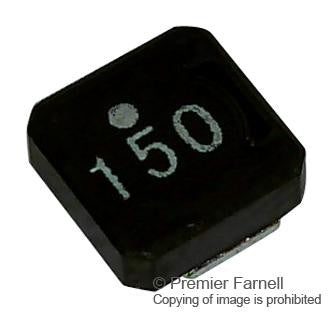

This is a Surface Mount Power Inductor, VLCF Series, 15 µH, 1 A, 680 mA, Wirewound, 0.303 ohm product from TDK with the model number VLCF4020T-150MR68
Product details
| Product Range | VLCF Series |
| Inductance | 15µH |
| RMS Current (Irms) | 1A |
| Saturation Current (Isat) | 680mA |
| Inductor Construction | Wirewound |
| DC Resistance Max | 0.303ohm |
| Power Inductor Case | 4.3mm x 4mm x 2mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | TDK |
| Part Number | VLCF4020T-150MR68 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
