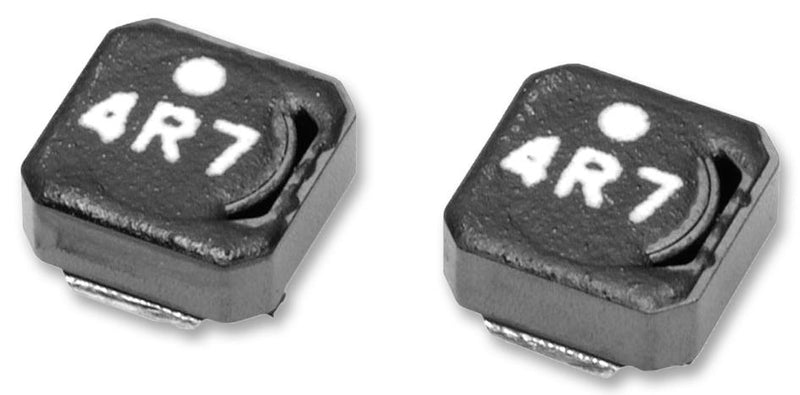

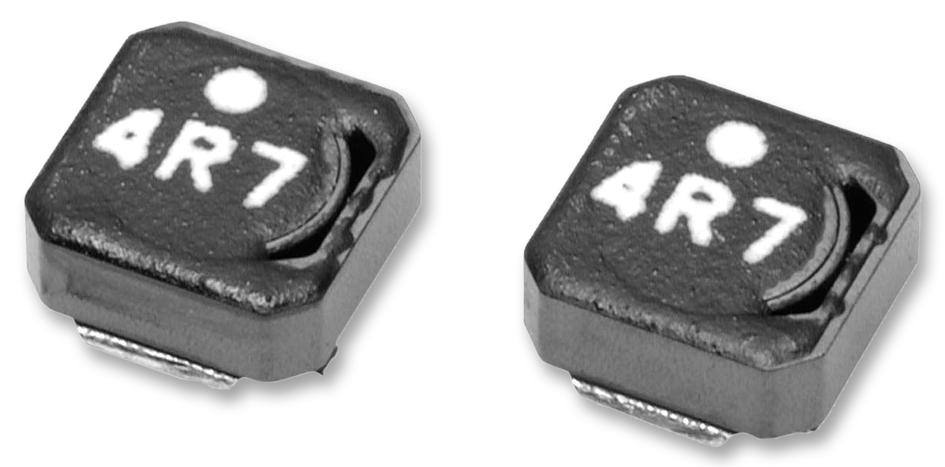

- Magnetic shield type wound inductor for power circuits
- Low-profile product
- Magnetic shield construction
- Power source inductor for mobile devices such as HDDs, DVCs & DSCs
- LCDs, other DC to DC converters
Product details
| Inductance |
22µH |
| RMS Current (Irms) |
900mA |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
490mA |
| Product Range |
VLCF Series |
| Power Inductor Case |
4mm x 4mm x 1.8mm |
| DC Resistance Max |
0.369ohm |
| Inductance Tolerance |
± 20% |
Other details
| Brand |
TDK |
| Part Number |
VLCF4018T-220MR49-2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
