This is a Surface Mount High Frequency Inductor, NLV Series, 100 µH, 60 mA, 1008 [2520 Metric], Wirewound product from TDK with the model number NLV25T-101J-EF
Product details
| Product Range |
NLV Series |
| Inductance |
100µH |
| DC Current Rating |
60mA |
| High Frequency Inductor Case |
1008 [2520 Metric] |
| Inductor Construction |
Wirewound |
| DC Resistance Max |
21ohm |
| Inductance Tolerance |
± 5% |
| Self Resonant Frequency Min |
12MHz |
| Packaging |
Cut Tape |
Other details
| Brand |
TDK |
| Part Number |
NLV25T-101J-EF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

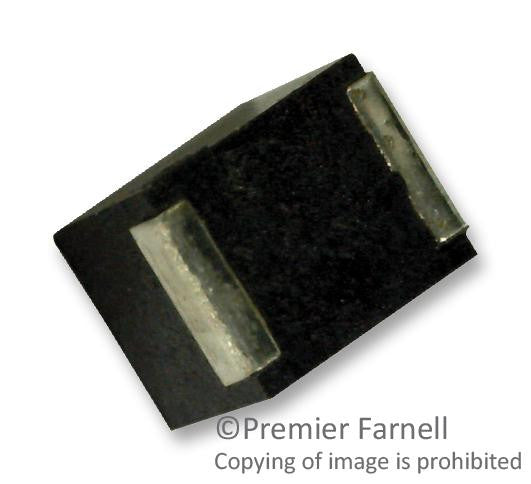

![TDK NLV25T-101J-EF Surface Mount High Frequency Inductor, NLV Series, 100 µH, 60 mA, 1008 [2520 Metric], Wirewound](http://www.tanotis.com/cdn/shop/products/2455225-40_f6178344-e8c2-4f49-98fd-976846b83f19_{width}x.jpg?v=1576001216)
