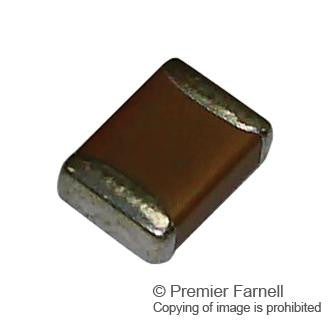

This is a Surface Mount High Frequency Inductor, MLF Series, 1 µH, 80 mA, 0805 [2012 Metric], Multilayer product from TDK with the model number MLF2012A1R0K
Product details
| Product Range |
MLF Series |
| Inductance |
1µH |
| DC Current Rating |
80mA |
| High Frequency Inductor Case |
0805 [2012 Metric] |
| Inductor Construction |
Multilayer |
| DC Resistance Max |
0.3ohm |
| Inductance Tolerance |
± 10% |
| Self Resonant Frequency Min |
120MHz |
| Packaging |
Cut Tape |
Other details
| Brand |
TDK |
| Part Number |
MLF2012A1R0K |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
