| ₹ 2783.52 includes GST and import duties. | |
| B2B customers can avail ₹ 424.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

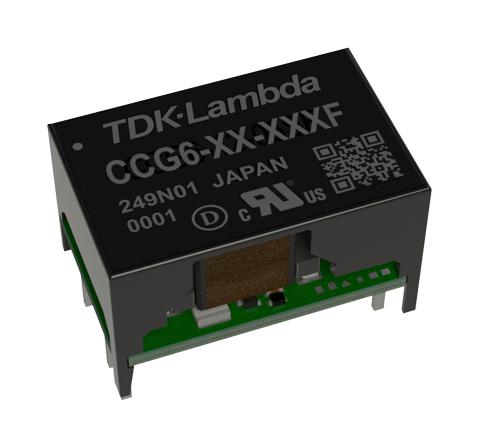

CCG6-48-05SF is a space saving CCG6 series isolated DC to DC converter. Single output models can be adjusted -5% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of up to -40 to +95°C and have an input to output isolation of 1,500VDC.
- Input voltage range from 18 to 76VDC
- Output voltage is 5VDC
- Through hole mounting
- Output current is 1.2A
- Non-conductive black plastic case, remote on-off control, switching frequency is 400KHz
- Wide 4:1 input range
- Certified to IEC62368-1
- No silicone potting
- 5 years warranty
- 19 x 12.4 x 11.5mm size
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | CCG6-48-05SF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2727.85 |
| 3-5 | ₹ 2700.01 |
| 5-10 | ₹ 2644.34 |
| 10+ | ₹ 2588.67 |
Bulk discount will be automatically applied during checkout based on quantity.
