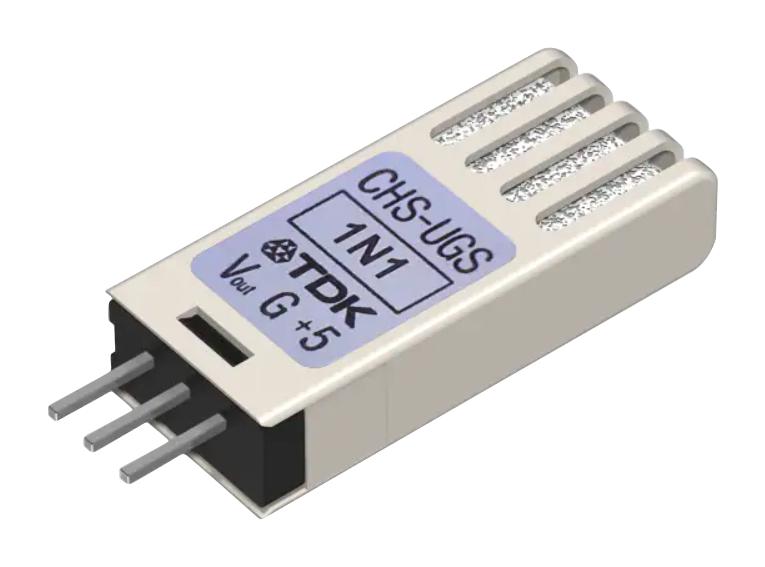

CHS-UGS is a CHS series humidity sensor. It measures a wide humidity range of 5 to 95% RH with high accuracy. It is of an all-in-one construction that integrates all needed circuitry and operates on a 5V power supply. Typical applications include refrigerators (condensation prevention), air conditioners (indoor humidity control), PPCs, LBPs (image quality control) and industrial electronic humidity sensors, air conditioners for plant factories, etc.
- ±5%RH accuracy
- The temperature characteristics are stable over a wide range
- Humidity-sensitive characteristics exhibit virtually no hysteresis
- Highly cost-effective and compact, requiring extremely little mounting space
- Low current consumption
- Outputs DC of 1V at 100(%)RH; relative humidity can be read directly with a voltmeter
- 27�11.5�6.5mm size square type sensor
Other details
| Brand |
TDK |
| Part Number |
CHS-UGS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
