This is a CGA6N2C0G2A683J230AE SMD Multilayer Ceramic Capacitor , 68000 pF, 100 V, 1210 [3225 Metric], ± 5%, C0G / NP0 product from TDK with the model number CGA6N2C0G2A683J230AE
Product details
| Capacitance |
68000pF |
| Voltage Rating |
100V |
| Ceramic Capacitor Case |
1210 [3225 Metric] |
| Capacitance Tolerance |
± 5% |
| Dielectric Characteristic |
C0G / NP0 |
| Product Range |
CGA Series - Soft Termination |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
125°C |
| Automotive Qualification Standard |
AEC-Q200 |
Other details
| Brand |
TDK |
| Part Number |
CGA6N2C0G2A683J230AE |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

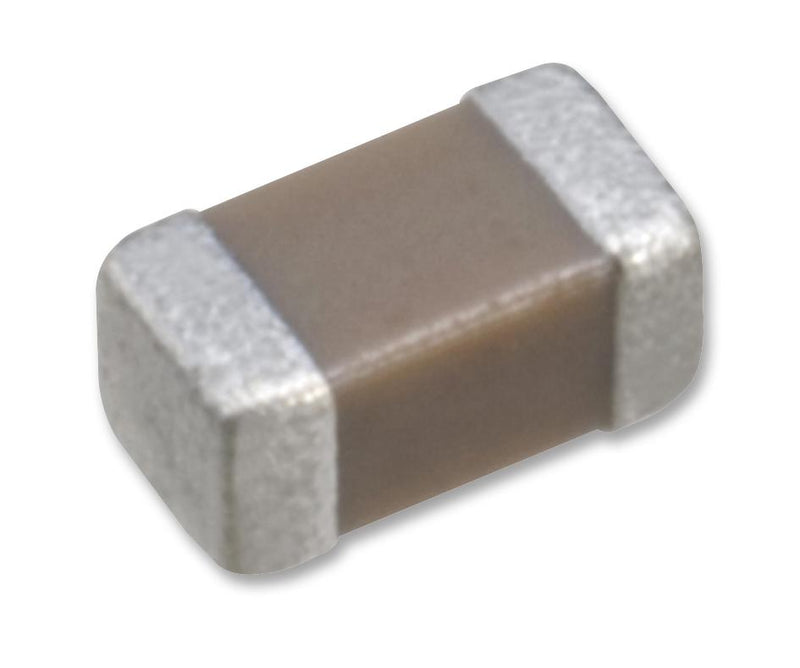

![TDK CGA6N2C0G2A683J230AE SMD Multilayer Ceramic Capacitor 68000 pF 100 V 1210 [3225 Metric] ± 5% C0G / NP0](http://www.tanotis.com/cdn/shop/products/0b57f8e324c5f8468c80793b82e51e97_ec212371-ad78-4346-a99a-d0a931d7bb75_{width}x.jpg?v=1595193495)
