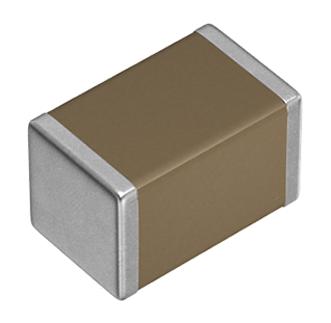

TDK CGA2B3X5R1H223M050BB CGA2B3X5R1H223M050BB SMD Multilayer Ceramic Capacitor 22000 pF 50 V 0402 [1005 Metric] ± 20% X5R CGA

General type CGA series, automotive grade of TDK's multilayer ceramic chip capacitor, is a product for surface mount which multiple sheets of dielectric and conductive material are layered alternately. The monolithic structure ensures superior mechanical strength and reliability. Also the lower ESR, ESL and better frequency characteristics are offered by the simple structure than other capacitors. The capacitance range is up to 47µF and the line-up has been expanding to the region of the film capacitor or electrolytic capacitor. Typically used for automotive electronic equipment (engine control units, sensor modules and battery line smoothing), LC resonance circuit (C0G) and applications requiring higher reliability.

• Superior mechanical strength and reliability due to the monolithic structure
• Low ESR, ESL and excellent frequency characteristics
• Low self-heating and high ripple resistance due to low ESR
• No polarity
• AEC-Q200 compliant

Other details

Brand	TDK
Part Number	CGA2B3X5R1H223M050BB
Quantity	Each (Supplied on Full Reel)
Technical Data Sheet EN
Manufacturer Catalogue EN
