Description
Product Overview

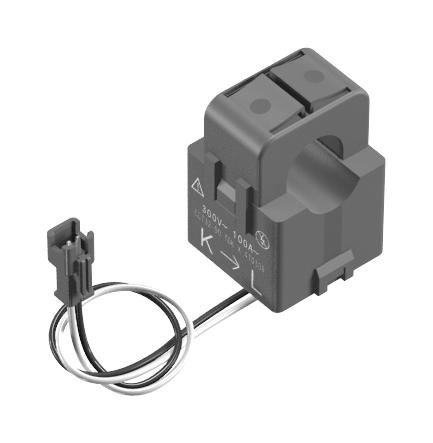

CCT323047-100-16-00 is a CCT series clamp type AC current sensor for energy management systems such as HEMS, BEMS, FEMS, CEMS. It accommodates automatic processes from wire wrapping and winding to soldering, ensuring high-quality and stable supply.
- Clamp type for easy installation on existing power equipment
- Equipped with a built-in open-circuit protective device
- 32mm length, 30mm width, 47mm height
- AC 0.1 to 100Arms (50/60Hz) applied current, AC 200Arms continuous AC maximum allowed current
- 16mm internal clamp section diameter
- Operating temperature range from -20°C to 60°C
- 3000:1 nominal current transformation ratio
- 285ohm secondary winding resistance, 33.3mA±1% (100A, 50/60Hz) output current accuracy
- 7.5V clamp element open-circuit protection
- 100Mohm over (DC500V) insulation resistance, UL 94 V-0 flame retardant grade
Product details
Other details
| Brand | TDK |
| Part Number | CCT323047-100-16-00 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2650.33 |
| 3-5 | ₹ 2623.29 |
| 5-10 | ₹ 2569.2 |
| 10+ | ₹ 2515.11 |
Bulk discount will be automatically applied during checkout based on quantity.
