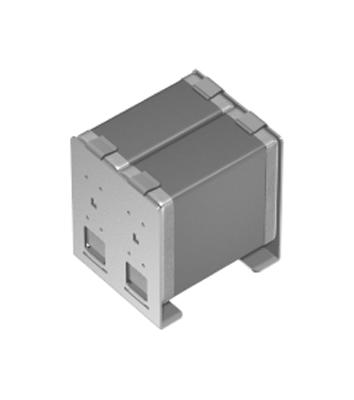

TDK CAA572X7T2J105M640LH SMD Multilayer Ceramic Capacitor 1 µF 630 V 2220 [5750 Metric] ± 20% X7T CA Series

CA series multilayer ceramic chip capacitors (commercial grade, MEGACAP type (low resistance, inline type)). MEGACAP type CA series capacitor is a product which metal frames are connected to terminations of MLCC. Unlike the conventional MEGACAP type CKG series which MLCCs are stacked vertically, it is possible to obtain large capacitance suppressing the product height and electrical resistance by inline structure which MLCCs are disposed abreast and optimization of metal frame composition. Low height and low electric resistance with high capacitance by inline structure which MLCCs are disposed abreast and optimization of metal frame composition. Hybrid joints between the metal frames and MLCCs are both soldered and clamped mechanically to prevent the MLCCs from falling out even in high temperature reflow soldering. Used for smoothing and decoupling applications that require large capacitance, resonant circuit of wireless power transfer.

• Higher mechanical endurance by metal frame structure

Other details

Brand	TDK
Part Number	CAA572X7T2J105M640LH
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
