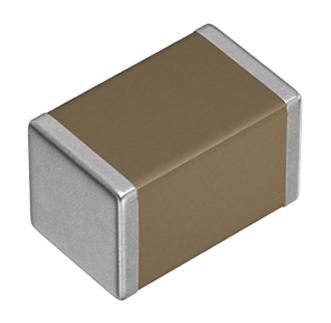

![TDK C5750X7R1C476M230KB SMD Multilayer Ceramic Capacitor, 47 µF, 16 V, 2220 [5650 Metric], ± 20%, X7R, C](http://www.tanotis.com/cdn/shop/files/42bc931bc9d45bc5f0c372ca881201d9_138c9d08-f367-4b6a-86a6-a651bf6d88e2_{width}x.jpg?v=1706905744)
![TDK C5750X7R1C476M230KB SMD Multilayer Ceramic Capacitor, 47 µF, 16 V, 2220 [5650 Metric], ± 20%, X7R, C](http://www.tanotis.com/cdn/shop/files/42bc931bc9d45bc5f0c372ca881201d9_138c9d08-f367-4b6a-86a6-a651bf6d88e2_1024x.jpg?v=1706905744)
| ₹ 283.61 includes GST and import duties. | |
| B2B customers can avail ₹ 43.25 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TDK C series commercial grade multilayer ceramic chip capacitor is Class 2, X7R dielectric material with perfect layering technique which ensures the precise placing of dielectric and electrode layers as well as the multilayer technology. High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers. Typical applications include smoothing and decoupling circuits.
- Capacitance values ranging from 0.5pF to 100µF based on dielectric material
- Case sizes 0402, 0603, 1005, 1608, 2012, 3216, 3225, 4532 and 5750 are available
- DC voltage rating of 4V to 50V
- Low ESL and excellent frequency characteristics
- Low self heating and high ripple resistance due to low ESR
- High temperature range of -55°C to 125°C
- Monolithic structure ensures superior mechanical strength and reliability
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management, Medical
Product details
| Capacitance: 47µF |
| Voltage(DC): 16V |
| Capacitor Case / Package: 2220 [5650 Metric] |
| Capacitance Tolerance: ± 20% |
| Dielectric Characteristic: X7R |
| Product Range: C |
| Product Length: 5.7mm |
| Product Width: 5mm |
| Capacitor Terminals: Wraparound |
| Operating Temperature Min: -55°C |
| Operating Temperature Max: 125°C |
| Qualification: - |
| MSL: - |
Other details
| Brand | TDK |
| Part Number | C5750X7R1C476M230KB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
