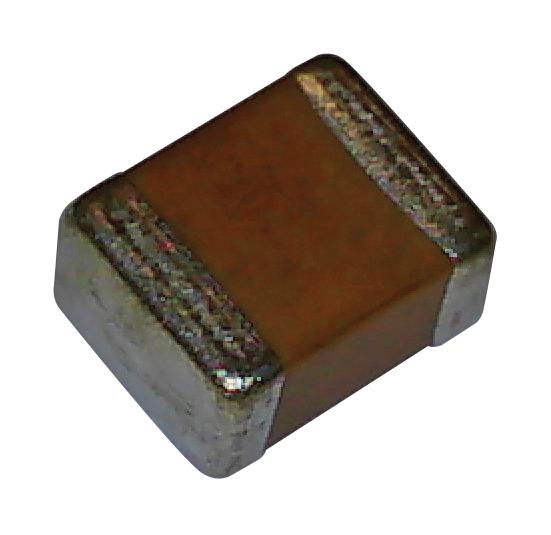

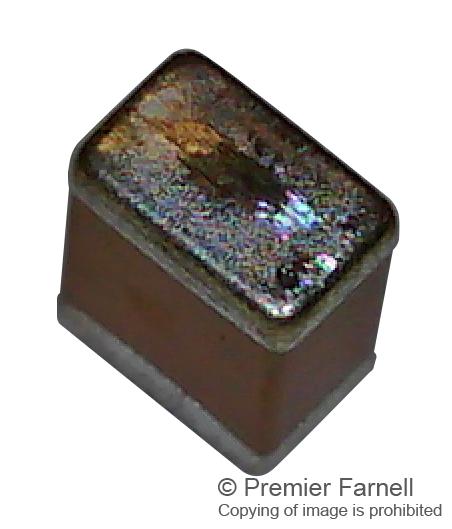

TDK C4532X5R1A476M280KA C4532X5R1A476M280KA SMD Multilayer Ceramic Capacitor 47 µF 10 V 1812 [4532 Metric] ± 20% X5R C

The TDK C series commercial grade multilayer ceramic chip capacitor is Class 2, X5R dielectric material with perfect layering technique which ensures the precise placing of dielectric and electrode layers as well as the multilayer technology. High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers. Typical applications include smoothing and decoupling circuits.

• Capacitance values ranging from 0.5pF to 100µF based on dielectric material
• Case sizes 0402, 0603, 1005, 1608, 2012, 3216, 3225, 4532 and 5750 are available
• DC voltage rating of 4V to 50V
• Low ESL and excellent frequency characteristics
• Low self heating and high ripple resistance due to low ESR
• High temperature range of -55°C to 85°C
• Monolithic structure ensures superior mechanical strength and reliability

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management, Medical

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	TDK
Part Number	C4532X5R1A476M280KA
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
