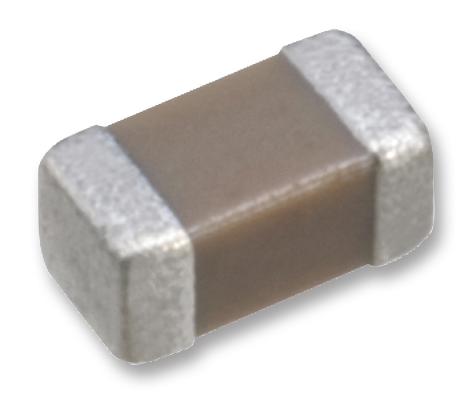

TDK C2012X5R1C475K125AC SMD Multilayer Ceramic Capacitor 4.7 µF 16 V 0805 [2012 Metric] ± 10% X5R C Series

The TDK C series commercial grade multilayer ceramic chip capacitor is Class 2, X5R dielectric material with perfect layering technique which ensures the precise placing of dielectric and electrode layers as well as the multilayer technology. High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers. Typical applications include smoothing and decoupling circuits.

• Capacitance values ranging from 0.5pF to 100µF based on dielectric material
• Case sizes 0402, 0603, 1005, 1608, 2012, 3216, 3225, 4532 and 5750 are available
• DC voltage rating of 4V to 50V
• Low ESL and excellent frequency characteristics
• Low self heating and high ripple resistance due to low ESR
• High temperature range of -55°C to 85°C
• Monolithic structure ensures superior mechanical strength and reliability

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management, Medical

Footnotes Not Recommended for New Design

Product details

Capacitance	4.7µF
Voltage Rating	16V
Ceramic Capacitor Case	0805 [2012 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X5R
Product Range	C Series
Operating Temperature Min	-55°C
Operating Temperature Max	85°C
Automotive Qualification Standard	-
MSL	-

Other details

Brand	TDK
Part Number	C2012X5R1C475K125AC
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
