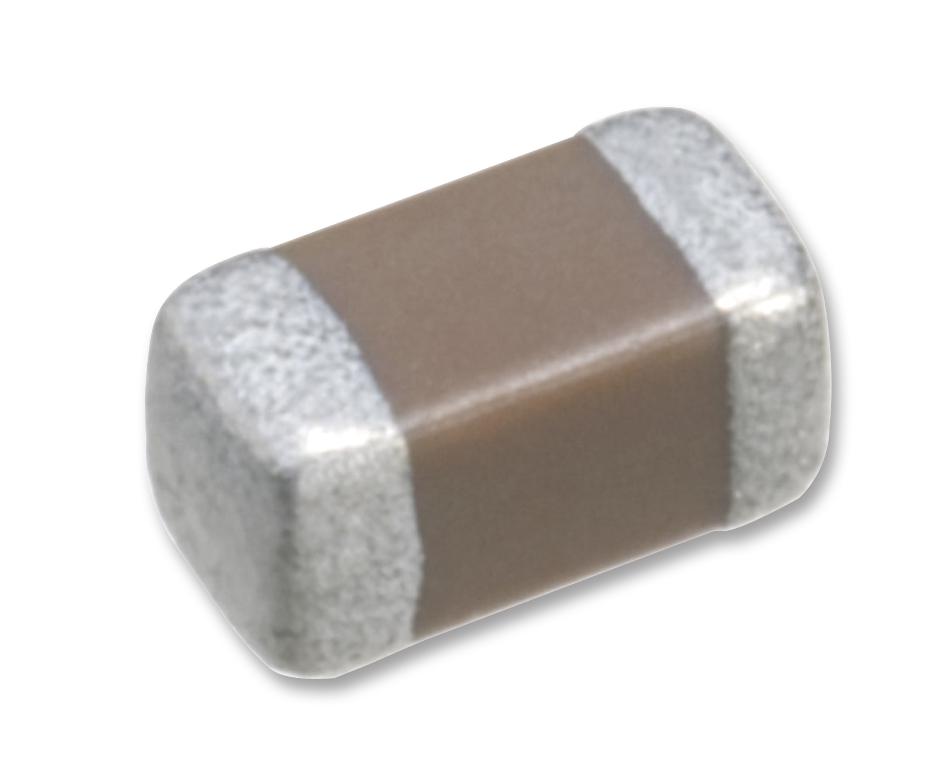

TDK C1608X5R1C105K080AA SMD Multilayer Ceramic Capacitor 1 µF 16 V 0603 [1608 Metric] ± 10% X5R C Series

The C1608X5R1C105K080AA is a multilayer ceramic Chip Capacitor, X5R temperature characteristics and 0603 case. High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers. A monolithic structure ensures superior mechanical strength and reliability. Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values.

• Low self-heating and high ripple resistance due to low ESR

Applications

Consumer Electronics, Power Management, Automation & Process Control, Portable Devices, Medical

Footnotes Not Recommended for New Design

Product details

Capacitance	1µF
Voltage Rating	16V
Ceramic Capacitor Case	0603 [1608 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X5R
Product Range	C Series
Operating Temperature Min	-55°C
Operating Temperature Max	85°C
Automotive Qualification Standard	-
MSL	-

Other details

Brand	TDK
Part Number	C1608X5R1C105K080AA
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
