Description
Product Overview
The BD680 is a PNP complementary power Darlington Transistor manufactured in Planar Base Island technology. It offers monolithic Darlington configuration with integrated anti-parallel collector-emitter diode.
- Good hFE linearity
- High fT frequency
Applications
Industrial, Power Management
Product details
| Transistor Polarity | PNP |
| Power Dissipation Pd | 40W |
| RF Transistor Case | SOT-32 |
| DC Current Gain hFE | 750hFE |
| Operating Temperature Max | 150°C |
| Qualification | - |
| Collector Emitter Voltage V(br)ceo | 80V |
| DC Collector Current | 4A |
| No. of Pins | 3Pins |
| Transistor Mounting | Through Hole |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BD680 |
| Quantity | Each |
| Technical Data Sheet (377.20KB) EN | View or download |
| Product Change Notice (119.25KB) EN | View or download |

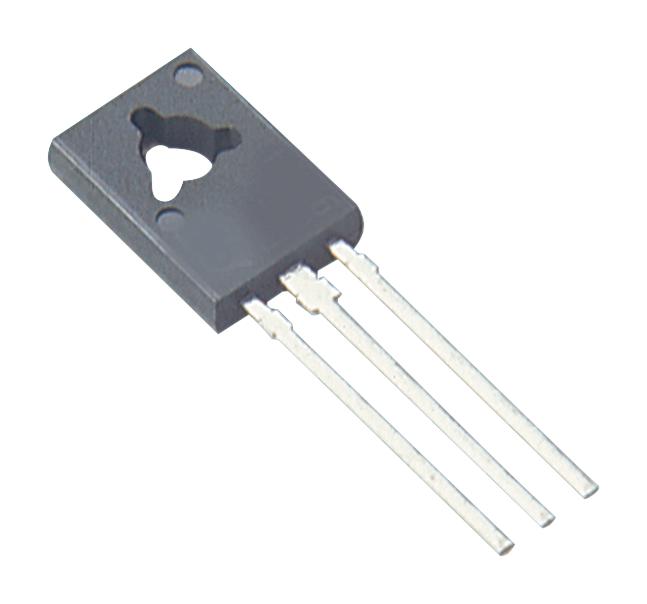

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
