Description
Product Overview

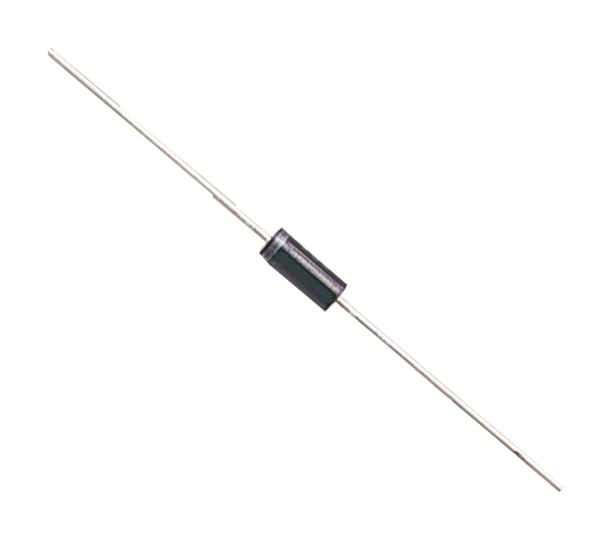

The Transil 1.5KE series from STMicroelectronics are transient voltage suppressing diodes. These diodes provide high overvoltage protection and instantaneous response to transient overvoltage by clamping action. Transil 1.5KE series are used to protect voltage sensitive devices such as low voltage supplied IC’s. The unidirectional type TVS diodes are suitable for DC applications and bidirectional type TVS diodes are suitable for AC applications.
- Unidirectional and bidirectional transient voltage suppressors
- Peak pulse power of 1500W
- Breakdown voltage ranges from 6.8V to 440V
- Fast response time
- High surge capability
- Low clamping factor
- Maximum operating temperature of 175°C
- Assembly flexibility with axial (DO-201) and SMD packages
- Best in class performance at full power even with high junction temperatures
Applications
Safety, Industrial, Power Management, Consumer Electronics, Portable Devices
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range | Transil 1.5KE Series |
| Reverse Standoff Voltage | 102V |
| Diode Case Style | DO-201 |
| Minimum Breakdown Voltage | 114V |
| Peak Pulse Power Dissipation | 1.5kW |
| Diode Mounting | Through Hole |
| SVHC | No SVHC (25-Jun-2025) |
| TVS Polarity | Unidirectional |
| Clamping Voltage Max | 165V |
| No. of Pins | 2Pins |
| Maximum Breakdown Voltage | 126V |
| Operating Temperature Max | 175°C |
| Qualification | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | 1.5KE120A |
| Quantity | Each |
| Technical Data Sheet (137.06KB) EN | View or download |
| EOL Notices (295.67KB) EN | View or download |
| Product Change Notice (119.25KB) EN | View or download |
