| ₹ 137.58 includes GST and import duties. | |
| B2B customers can avail ₹ 20.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

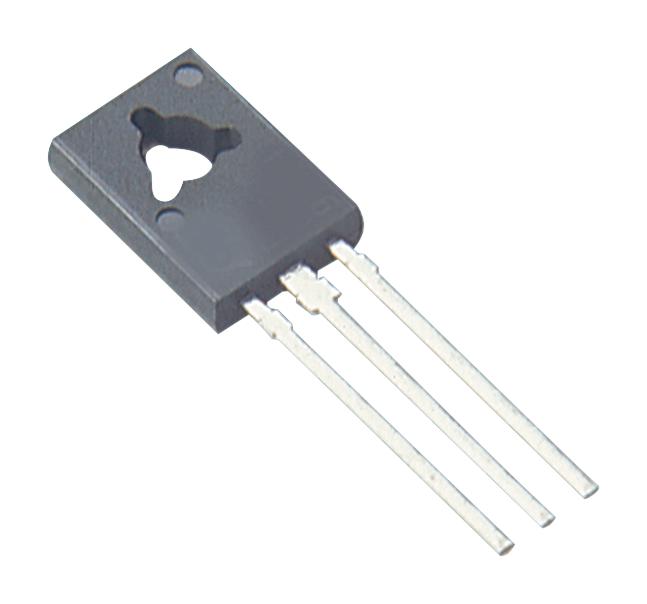

The BD135 is a NPN low voltage Transistor built in epitaxial planar technology. Designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.
- Complement to BD136
- 0.5A Base current
- 10°C/W Junction-to-case thermal resistance
- 100°C/W Junction-to-ambient thermal resistance
Applications
Audio
Product details
| Transistor Polarity | NPN |
| Continuous Collector Current | 1.5A |
| Transistor Case Style | TO-126 |
| No. of Pins | 3Pins |
| DC Current Gain hFE Min | 250hFE |
| Product Range | - |
| MSL | - |
| Collector Emitter Voltage Max | 45V |
| Power Dissipation | 1.25W |
| Transistor Mounting | Through Hole |
| Transition Frequency | - |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BD135 |
| Quantity | Each |
| Product Change Notice (119.25KB) EN | View or download |
| Technical Data Sheet (152.32KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 134.83 |
| 3-5 | ₹ 133.45 |
| 5-10 | ₹ 130.7 |
| 10+ | ₹ 127.95 |
Bulk discount will be automatically applied during checkout based on quantity.
