Product Overview
LM317T is an adjustable voltage regulator monolithic integrated circuit intended for use as a positive adjustable voltage regulator. It is designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
- 0.1% line and load regulation, floating operation for high voltages
- Complete series of protections current limiting, thermal shutdown and SOA control
- Line regulation is 0.01%/V typ (VI- VO = 3 to 40V, TJ = 25°C)
- Load regulation is 5mW typ (VO ≤ 5V IO = 10mA to IMAX, TJ= 25°C)
- Reference voltage range from 1.2 to 1.3V (between pin 3 and pin 1, TJ= 25°C)
- Output voltage temperature stability is 1% typ (VI- VO = 5V, IO = 500mA, TJ = 0 to 125°C)
- Minimum load current is 3.5mA typ (VI - VO = 40V, TJ = 0 to 125°C)
- Output noise voltage (percentage of VO) is 0.003% typ (B = 10Hz to 100KHz, TJ = 25°C)
- Supply voltage rejection is 65dB (TJ = 25°C, f = 120Hz, CADJ = 0)

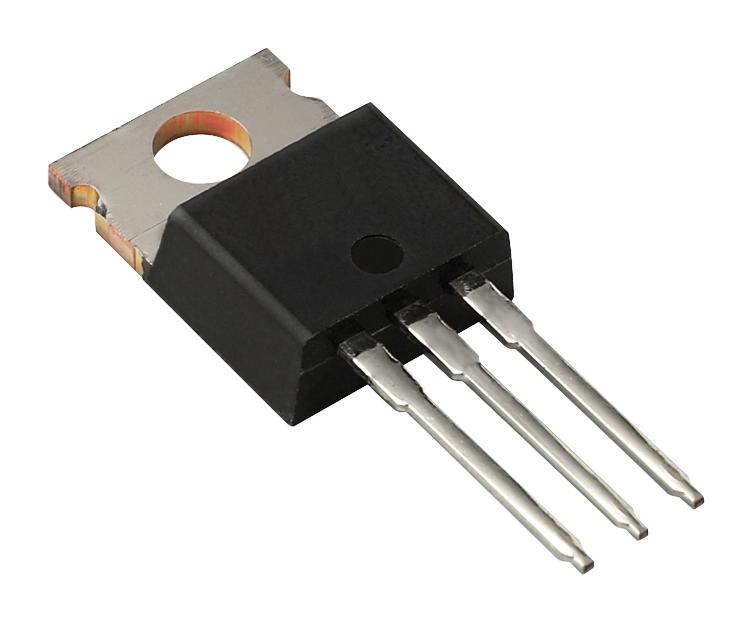

- TO-220 (single gauge) package, operating junction temperature range from 0 to 125°C
Product details
| Output Type |
Adjustable |
| Output Voltage - Nom |
- |
| Output Voltage Max |
37V |
| Input Voltage Max |
40V |
| Max Output Current |
2.2A |
| IC Case / Package |
TO-220 |
| IC Mounting |
Through Hole |
| Operating Temperature Max |
125°C |
| MSL |
MSL 1 - Unlimited |
| No. of Outputs |
1Outputs |
| Output Voltage Min |
1.2V |
| Input Voltage Min |
4.2V |
| Product Range |
LM217, LM317 |
| Output Current Max |
2.2A |
| No. of Pins |
3Pins |
| Operating Temperature Min |
0°C |
| Qualification |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
