Product Overview

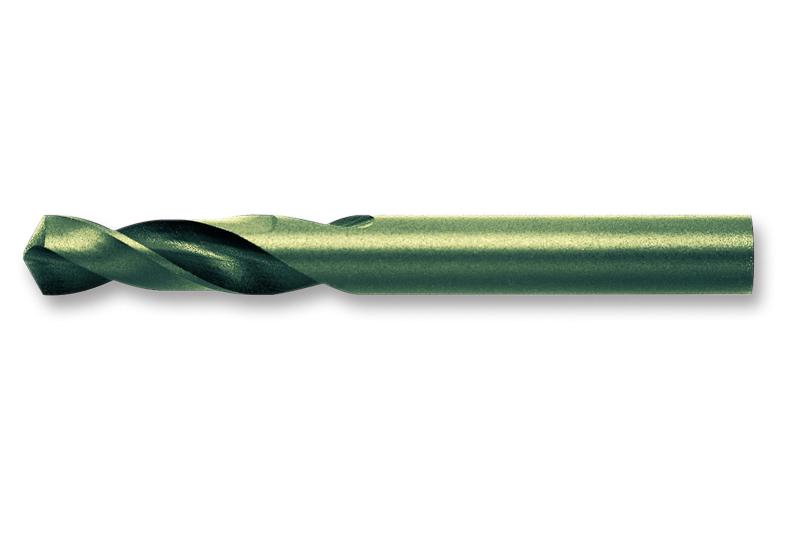

202060E is a DIN 1897 type N HSS Co 5 ground twist drill bit with split point - short. Short and stable standard drill consisting of cobalt alloyed heavy-duty high-speed steel with higher heat-resistance. Ideally suitable for assembly work in thin-walled materials such as sheet steels, flat steels and profile steels. High security against fracture. For use in all handheld drilling machines.
- 66mm length, 6mm diameter and 28mm spiral length
- Cylindrical shaft
- Right hand cutting direction
- 25° - 30° spiral angle
- 130° point angle
- Shape C: split point tip grinding
- Normal groove profile, normal core and h8 tolerance
Product details
| Drill Bit Size Metric |
6mm |
| Effective Length |
28mm |
| Product Range |
- |
| Drill Bit Size Imperial |
- |
| Overall Length |
66mm |
Other details
| Brand |
RUKO |
| Part Number |
202060E |
| Quantity |
Each |
| Technical Data Sheet (282.31KB) EN |
View or download |
