Description
Product Overview
The MC14532BDG is a 8-bit Priority Encoder constructed with complementary MOS (CMOS) enhancement mode devices. The primary function of a priority encoder is to provide a binary address for the active input with the highest priority. Eight data inputs (D0 thru D7) and an enable input (Ein) are provided. Five outputs are available, three are address outputs (Q0 thru Q2), one group select (GS) and one enable output (Eout). It is capable of driving two low-power TTL loads or one low-power Schottky TTL load over the rated temperature range.
- Diode protection on all inputs
Applications
Industrial
Product details
| Logic Family / Base Number | MC14532 |
| No. of Outputs | 4Outputs |
| IC Case / Package | SOIC |
| Supply Voltage Min | 3V |
| Logic IC Family | MC145 |
| Operating Temperature Min | -55°C |
| Qualification | - |
| MSL | - |
| Logic Type | Priority Encoder |
| Logic Case Style | SOIC |
| No. of Pins | 16Pins |
| Supply Voltage Max | 18V |
| Logic IC Base Number | 4532 |
| Operating Temperature Max | 125°C |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | ONSEMI |
| Part Number | MC14532BDG |
| Quantity | Each |
| Product Change Notice (304.67KB) EN | View or download |
| Technical Data Sheet (109.55KB) EN | View or download |

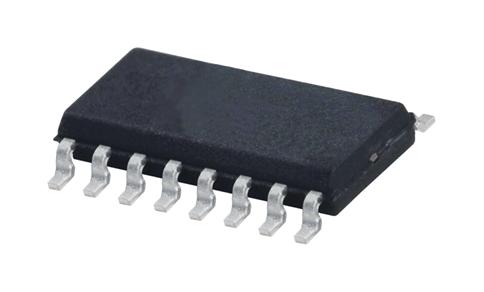

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
