Product Overview

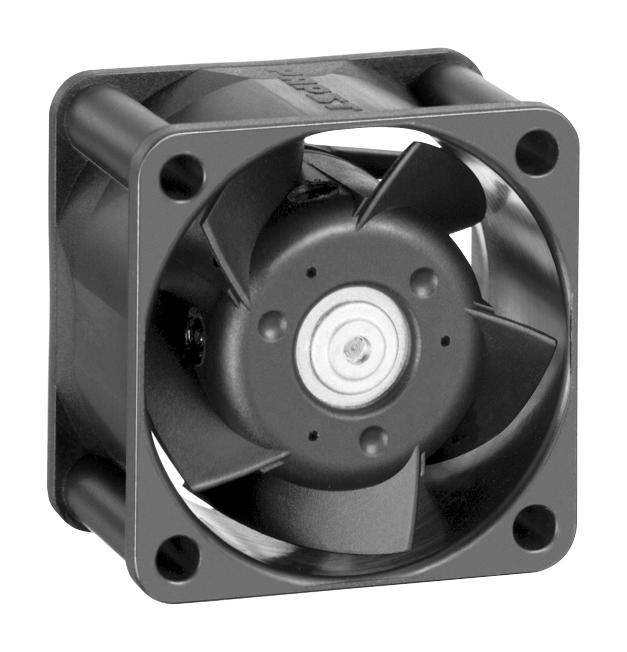

ebm-papst “tachometer” fans allow external monitoring via a signal which is generated from a sensor integrated within the fans electronics. Speed-proportional, square-wave signals are created in accordance of the motor speed.
- Conveys current fan speed via an integrated sensor
- Open-collector signal output
- 3 wire model
- White speed signal wire
Product details
| Supply Voltage VDC |
24V |
| Fan Frame Size |
40mm |
| Bearing Type |
Ball Bearing |
| Noise Rating |
46dBA |
| Rated Speed |
13000rpm |
| Current Rating |
- |
| Air Flow - m3/min |
0.4m³/min |
| SVHC |
Lead (14-Jun-2023) |
| Fan Frame Type |
Square |
| External Depth |
25mm |
| Air Flow - CFM |
14.1CFM |
| Power Rating |
3.6W |
| Power Connection Type |
3 Lead Wires, Sensor Output |
| IP Rating |
IP20 |
| Product Range |
400J |
