| ₹ 110.29 includes GST and import duties. | |
| B2B customers can avail ₹ 16.82 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

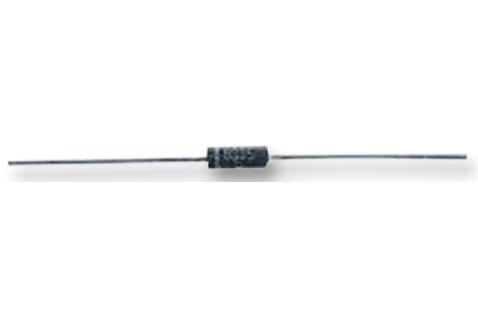

The 1N5378BG is a Surmetic™ 40 Zener Voltage Regulator Diode with void-free transfer-moulded thermosetting plastic case, all external surfaces are corrosion-resistant and leads are readily solderable finish, cathode indicated by polarity band, tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions.
- 180W at 8.3ms Surge rating
- 25°C/W Junction-to-lead thermal resistance
- 0.5μA at 76V Leakage current
Applications
Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Zener Voltage Nom | 100V |
| Diode Case Style | 017AA |
| Operating Temperature Max | 200°C |
| Product Range | 1N53 Series |
| SVHC | Lead (25-Jun-2025) |
| Power Dissipation | 5W |
| No. of Pins | 2Pins |
| Diode Mounting | Through Hole |
| Qualification | - |
Other details
| Brand | ONSEMI |
| Part Number | 1N5378BG |
| Quantity | Each |
| Technical Data Sheet (130.02KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 108.08 |
| 3-5 | ₹ 106.98 |
| 5-10 | ₹ 104.78 |
| 10+ | ₹ 102.57 |
Bulk discount will be automatically applied during checkout based on quantity.
