Description
Product Overview

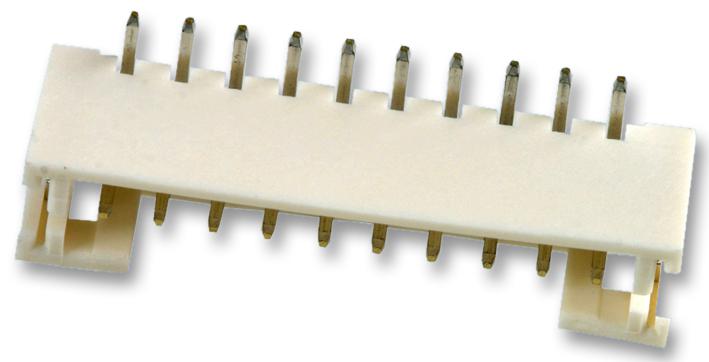

The B10B-PH-SM4-TB(LF)(SN) is a 10-contact 2mm pitch Crimp Connector, 2A, 100V rated. This PH thin disconnectable wire to board Connector is made of tin plated copper undercoated copper alloy post, ivory PA wafer, tin plated copper coated brass solder tab having top entry PC board mounting direction. The dimple at the center of the contact ensures positive contact and low contact resistance at all times. The contact has a long wire strip holding length of 2.6 ±0.4mm, fully shrouded header and 24AWG applicable wire gauge.
- Surface mount model
- 10mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- -25 to 85°C Operating temperature range
Applications
Industrial
Product details
| Connector Systems | Wire-to-Board |
| No. of Rows | 1Rows |
| Contact Termination Type | Surface Mount |
| Connector Shroud | Shrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (25-Jun-2025) |
| Pitch Spacing | 2mm |
| No. of Contacts | 10Contacts |
| Product Range | PH |
| Contact Material | Brass |
| Connector Type | PCB Header |
Other details
| Brand | JST / JAPAN SOLDERLESS TERMINALS |
| Part Number | B10B-PH-SM4-TB(LF)(SN) |
| Quantity | Each |
| Technical Data Sheet (99.94KB) EN | View or download |
