Description
Product Overview

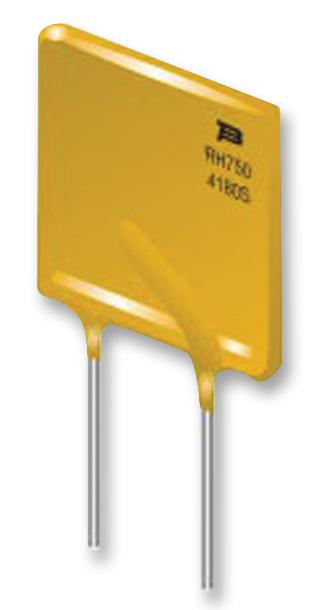

The MF-RX/72 series PTC Resettable Fuse for any application where required low voltage power supply, up to 72V and a load to be protected, including loudspeakers and power transformers.
- 72V Rated
- Radial leaded device
- Cured, flame-retardant epoxy polymer insulating material meets UL 94 V-0 requirements
- Resettable circuit protection
Applications
Security, Audio, Power Management
Product details
| Product Range | MF-RX/72 |
| Holding Current | 3.75A |
| Time to Trip | 24s |
| Current Rating Max | 40A |
| Diameter | - |
| Thickness | 3.1mm |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| Voltage Rating | 72VDC |
| Trip Current | 7.5A |
| Fuse Shape | Rectangular |
| Lead Spacing | 10.2mm |
| Length | 23.51mm |
| Height | 29.5mm |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | BOURNS |
| Part Number | MF-RX375/72-0 |
| Quantity | Each |
| Technical Data Sheet (521.57KB) EN | View or download |
| Technical Data Sheet (393.93KB) EN | View or download |
| Product Change Notice (607.51KB) EN | View or download |
