Product Overview

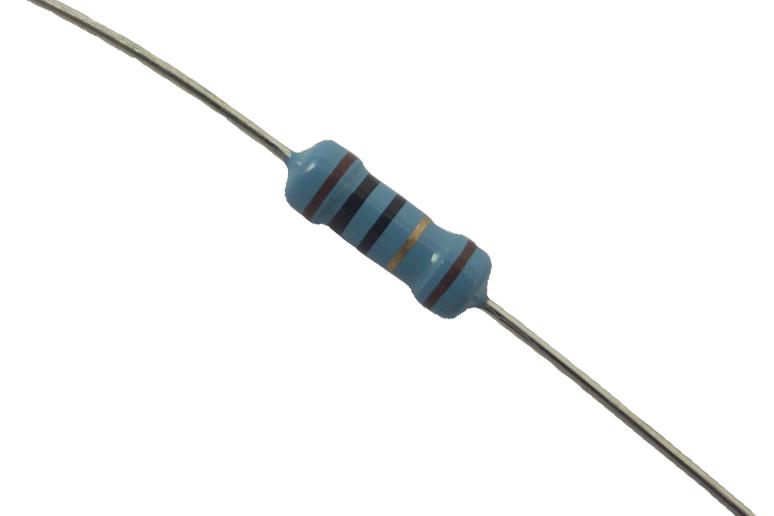

MF25 120R is an axial leaded, precision metal film fixed resistor. The nichrome resistor element provides stable performance in various environments. The multiple epoxy coating on vacuum-deposited metal film provides superior moisture protection.
- Maximum working voltage of 250V
- Power rating of 250mW
- Tolerance of ±1%
- Temperature coefficient (TCR) of ±50ppm/°C
- EIA standard colour coding
- Low noise and voltage coefficient, wide precision range in small package
- 120 ohm resistance
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Resistance |
120ohm |
| Power Rating |
250mW |
| Resistor Case / Package |
Axial Leaded |
| Resistor Technology |
Metal Film |
| Resistor Type |
Precision |
| Product Length |
6.8mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Product Range |
MC MF Series |
| Resistance Tolerance |
± 1% |
| Voltage Rating |
250V |
| Temperature Coefficient |
± 50ppm/°C |
| Product Diameter |
2.5mm |
| Product Width |
- |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MF25 120R |
| Quantity |
Each |
| Technical Data Sheet (476.62KB) EN |
View or download |
| Certificate of Conformity (237.41KB) EN |
View or download |
