Description
Product Overview

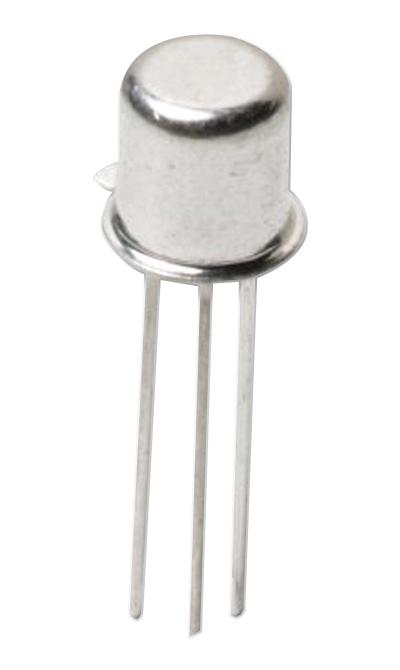

The BC107B from Multicomp Pro is a low power bipolar transistor in TO-18 metal can package. This NPN silicon planar epitaxial transistor is used for general purpose switching and amplification.
- Collector emitter voltage (Vce) is 45V at IC = 2mA, IB = 0
- DC collector current is 100mA
- Power dissipation is 600mW at Ta = 25°C
- Operating junction temperature range from -65°C to 200°C
- Collector emitter saturation voltage is 600mV at IC = 100mA, IB = 5mA
- DC current gain is 200 at IC = 2mA, VCE = 5V (minimum)
- Collector to base voltage is 6V at IE = 10 µA, IC = 0
- Minimum transition frequency is 150MHz at VCE = 5V, IC = 10mA, f = 100MHz
- Small signal current gain is 240 minimum at f = 1KHz, IC = 2mA, VCE = 5V
Applications
Signal Processing, Power Management, Portable Devices, Consumer Electronics, Industrial
Product details
| Transistor Polarity | NPN |
| Continuous Collector Current | 100mA |
| Transistor Case Style | TO-18 |
| No. of Pins | 3Pins |
| DC Current Gain hFE Min | 200hFE |
| Product Range | Multicomp Pro Bipolar NPN Transistor |
| MSL | - |
| Collector Emitter Voltage Max | 45V |
| Power Dissipation | 600mW |
| Transistor Mounting | Through Hole |
| Transition Frequency | 150MHz |
| Operating Temperature Max | 200°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MULTICOMP PRO |
| Part Number | BC107B |
| Quantity | Each |
| Technical Data Sheet (259.49KB) EN | View or download |
| Certificate of Conformity (255.41KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 152.43 |
| 3-5 | ₹ 150.87 |
| 5-10 | ₹ 147.76 |
| 10+ | ₹ 144.65 |
Bulk discount will be automatically applied during checkout based on quantity.
