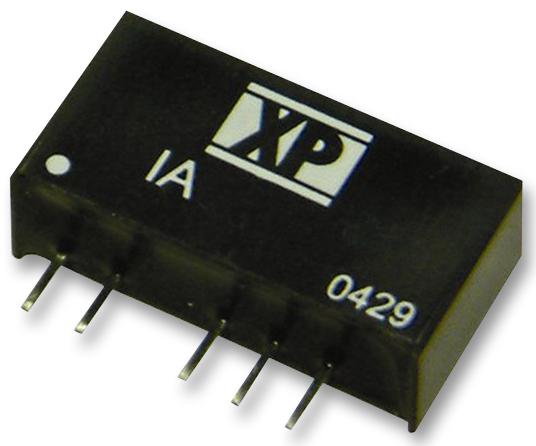

Product Overview
- Low cost
- Industry standard pin-out
- 1 kVdc isolation
- -40 °C to +85 °C @ full load
- UL94V-0 material
- See Technical Note for information about XP Power’s plans for the UKCA Marking
Applications
Power Management, Industrial
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
1:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
33mA |
| Output Current - Output 2 |
33mA |
| Isolation Voltage |
1kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.16mm |
| Input Voltage DC Min |
4.5V |
| Product Range |
IA Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
15V |
| Output Voltage - Output 2 |
-15V |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
5V |
| Width |
6.09mm |
| Depth |
19.3mm |
| Input Voltage DC Max |
5.5V |
