Description
Product Overview

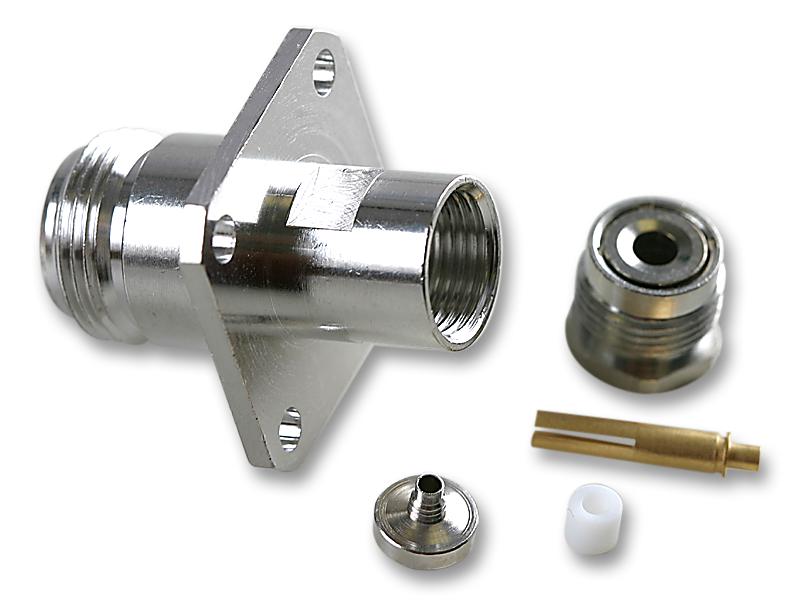

The R161270000 is a square flange clamp N-type Straight Jack for use with RG11, RG144, RG165, RG213, RG214, RG216, RG225 and RG393 RF coaxial cables. It has BBR2-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MΩ Minimum insulation resistance
- 2500Veff Minimum dielectric withstanding voltage
- 1400Veff Maximum voltage rating
- 500-cycle Mating life
- -55 to 155°C Operating temperature range
Applications
RF Communications, Industrial
Product details
| Connector Type | N Coaxial |
| Coaxial Termination | Solder |
| Coaxial Cable Type | RG11, RG144, RG165, RG213, RG214, RG216, RG225, RG393 |
| Contact Plating | Gold Plated Contacts |
| Product Range | - |
| Connector Body Style | Straight Flanged Jack |
| Impedance | 50ohm |
| Contact Material | Beryllium Copper |
| Connector Mounting | Panel Mount |
| SVHC | Lead (04-Feb-2026) |
Other details
| Brand | RADIALL |
| Part Number | R161270000 |
| Quantity | Each |
| Technical Data Sheet (156.85KB) EN | View or download |
| Manufacturer Catalogue (7.19MB) EN | View or download |
