Description
Product Overview

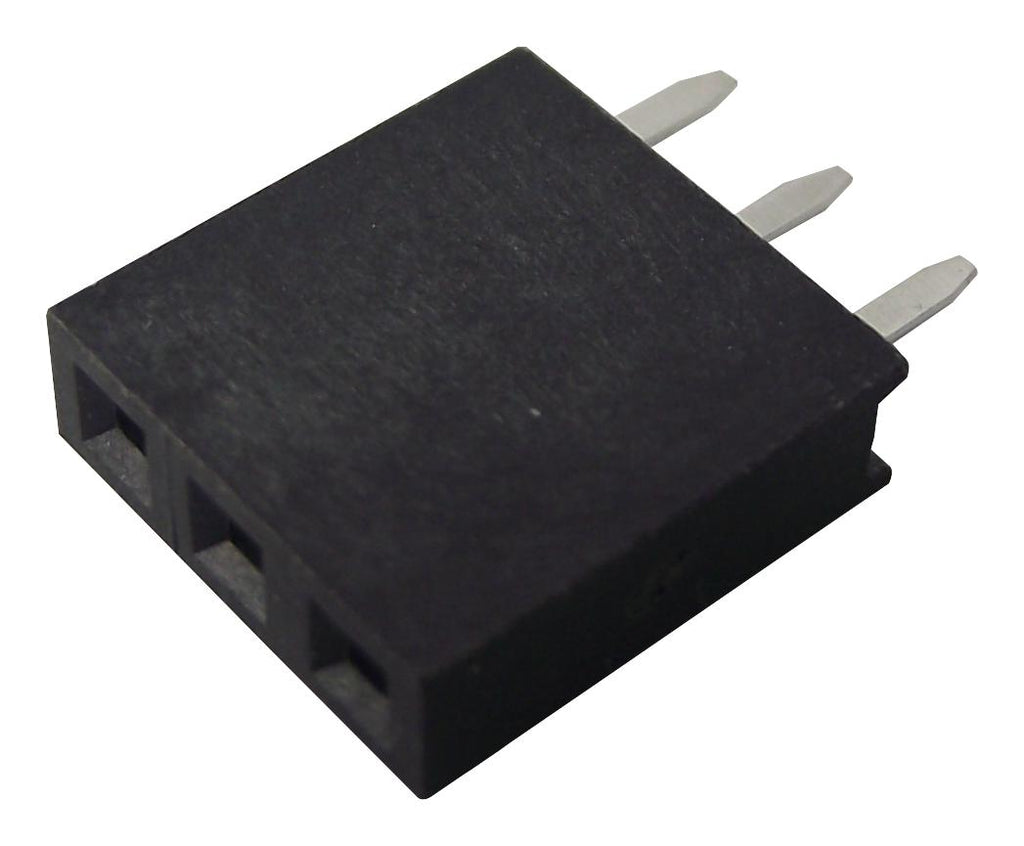

The M20-782 series from Harwin are 2.54mm pitch, single row SIL vertical PC tail sockets.
- Twin-leaf phosphor bronze contacts
- Available in gold and tin contact plating
- Number of contacts varies from 2 to 20 per row
- Ul94 V-0 black colour polyamide (nylon) 6T moulding
- Current rating of 3A
- Contact resistance is 20mohm maximum
- Insulation resistance of 1000Mohm minimum
- Operating temperature range -40°C to 105°C
- Durability of 300 cycles
- Voltage proof of 1000VAC
Applications
Industrial
Product details
| Connector Systems | Board-to-Board |
| No. of Rows | 1Rows |
| Connector Mounting | Through Hole Mount |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Contacts | 3Contacts |
| Product Range | M20 |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | HARWIN |
| Part Number | M20-7820346 |
| Quantity | Each |
| 3D Product Image (32.08KB) EN | View or download |
| Technical Data Sheet (208.39KB) EN | View or download |
| Manufacturer Catalogue (353.44KB) EN | View or download |
| Drawing (1.09MB) EN | View or download |
