Description
Product Overview

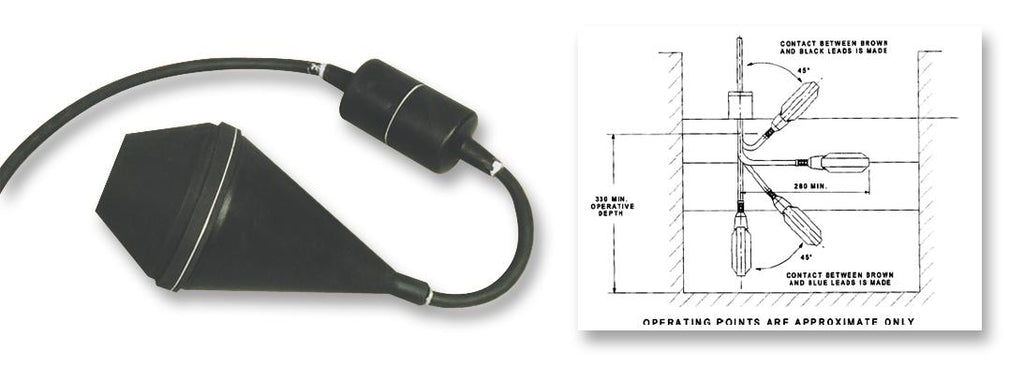

The LR02 series Float Switch is an efficient Liquid Level Detector designed for trouble free operation over a long life. The device is non-mercury version of the highly successful LR01/SC37 series. The mercury tilt switch is used in the LR01 has been replaced by a micro-switch and rolling ball arrangement which eliminates all heavy metals. There is no hard and fast rules applicable to mounting this unit, however the lead should be supported in an enclosed vessel and in an open vessel it is advantageous to clip the lead to the side especially if excessive turbulence is experienced. To obviate the effects of rapid switching conditions that would result if such turbulence is experienced, it is advantageous to use maintaining circuit which both safeguards the micro-switch and cuts out any chatter of the starters of associated pumps. Alternative cable lengths and actuating weight position can be produced to order.
Applications
Sensing & Instrumentation, Industrial
Product details
| Level Switch Type | Float Switch |
| Process Connection Type | - |
| Housing Material | - |
| Electrical Connection | Cable |
| Supply Voltage Max | - |
| Operating Temperature Max | 70°C |
| Media Type | Liquid |
| Operating Pressure Max | - |
| Switch Output | - |
| Supply Voltage Min | - |
| Operating Temperature Min | - |
| Product Range | LR02 Series |
Other details
| Brand | TRITON CONTROLS |
| Part Number | LR02-L20M |
| Quantity | Each |
| Technical Data Sheet (140.27KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 15422.56 |
| 3-5 | ₹ 15265.19 |
| 5-10 | ₹ 14950.44 |
| 10+ | ₹ 14635.7 |
Bulk discount will be automatically applied during checkout based on quantity.
