Product Overview

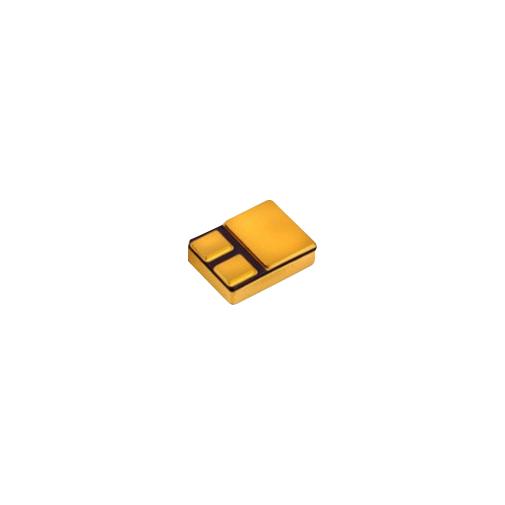

STMICROELECTRONICS STPS80A45CS1 Schottky Rectifier, 45 V, 80 A, Dual Common Cathode, SMD, 3 Pins, 820 mV
Product details
| Repetitive Peak Reverse Voltage |
45V |
| Diode Configuration |
Dual Common Cathode |
| No. of Pins |
3Pins |
| Forward Surge Current |
200A |
| Diode Mounting |
Surface Mount |
| Qualification |
- |
| Average Forward Current |
80A |
| Diode Case Style |
SMD |
| Forward Voltage Max |
820mV |
| Operating Temperature Max |
175°C |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STPS80A45CS1 |
| Quantity |
Each |
| Technical Data Sheet (1.15MB) EN |
View or download |
