Product Overview

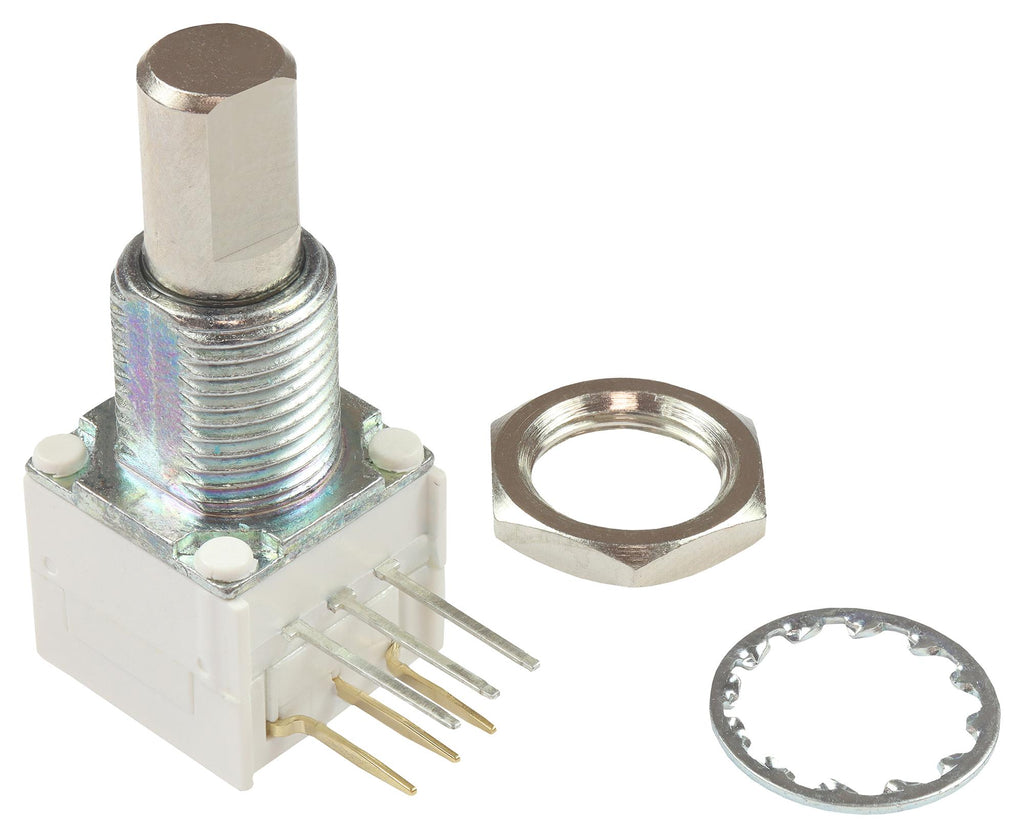

VISHAY 14921F0GHFX10103KA Rotary Potentiometer, 12.7mm, 10 kohm, 1 Turns, Linear, 1 W, ± 10%, 149 Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Potentiometer Mounting |
Through Hole |
| No. of Gangs |
2 |
| Shaft Length |
19.05mm |
| Potentiometer Type |
Modular |
| Potentiometer Terminals |
PC Pin |
| Product Length |
32.65mm |
| Product Height |
- |
| Operating Temperature Max |
125°C |
| No. of Turns |
1Turns |
| Power Rating |
1W |
| Product Range |
149 Series |
| Shaft Diameter |
6.35mm |
| Adjustment Type |
Flatted |
| Temperature Coefficient |
± 150ppm/°C |
| Resistor Technology |
Cermet |
| Resistor Case / Package |
- |
| Product Width |
12.5mm |
| Operating Temperature Min |
-40°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
VISHAY |
| Part Number |
14921F0GHFX10103KA |
| Quantity |
Each |
| Technical Data Sheet (158.40KB) EN |
View or download |
