Product Overview

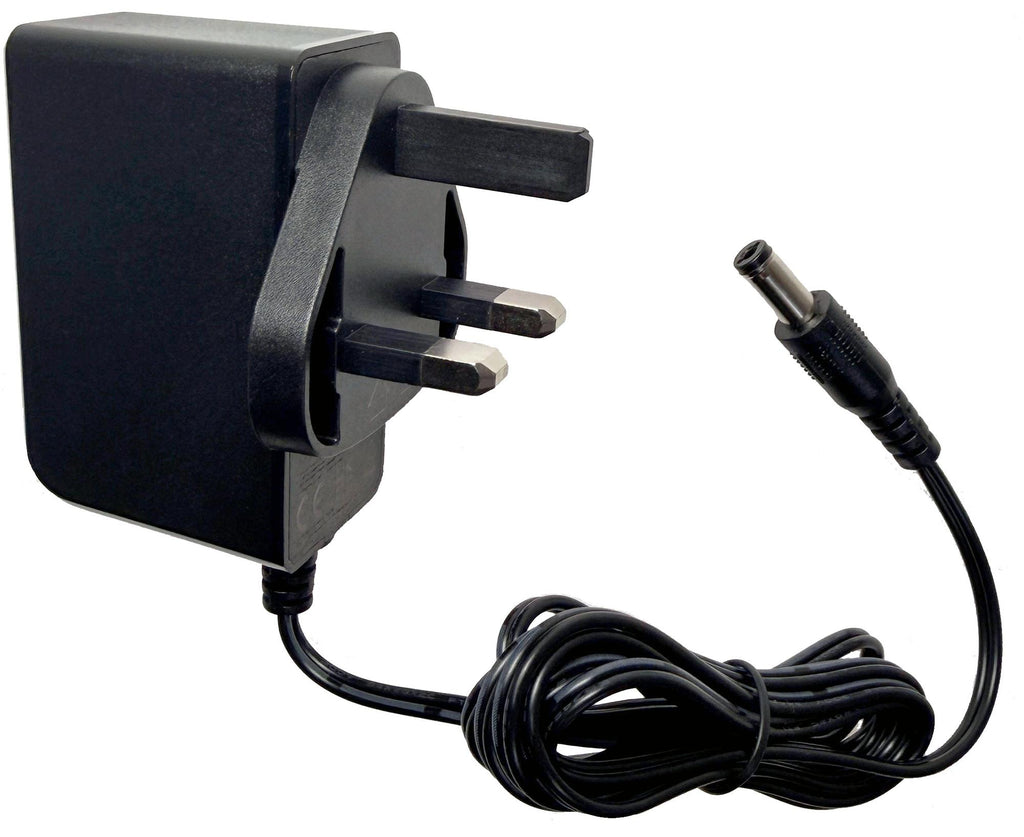

TP1005 is a UK power supply.
- Input voltage range from 100 to 240V AC (90 to 264V AC max.)
- Input frequency range from 47 to 63Hz, output voltage is 12V DC
- Current is 2000mA (2amp), power is 24W
- Short circuit, over voltage protection
- 1.5 metres cord length, 2.1 x 5.5 x 12mm (female) DC connector
- Polarity is +ve (positive) centre, quality and reliability
- Dimension is 59 x 48 x 29mm
- Operating temperature range from 0°C to + 40°C
- Level VI efficiency
- UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others
Product details
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TIGER POWER SUPPLIES |
| Part Number |
TP1005 |
| Quantity |
Each |
| Technical Data Sheet (837.36KB) EN |
View or download |
