Product Overview

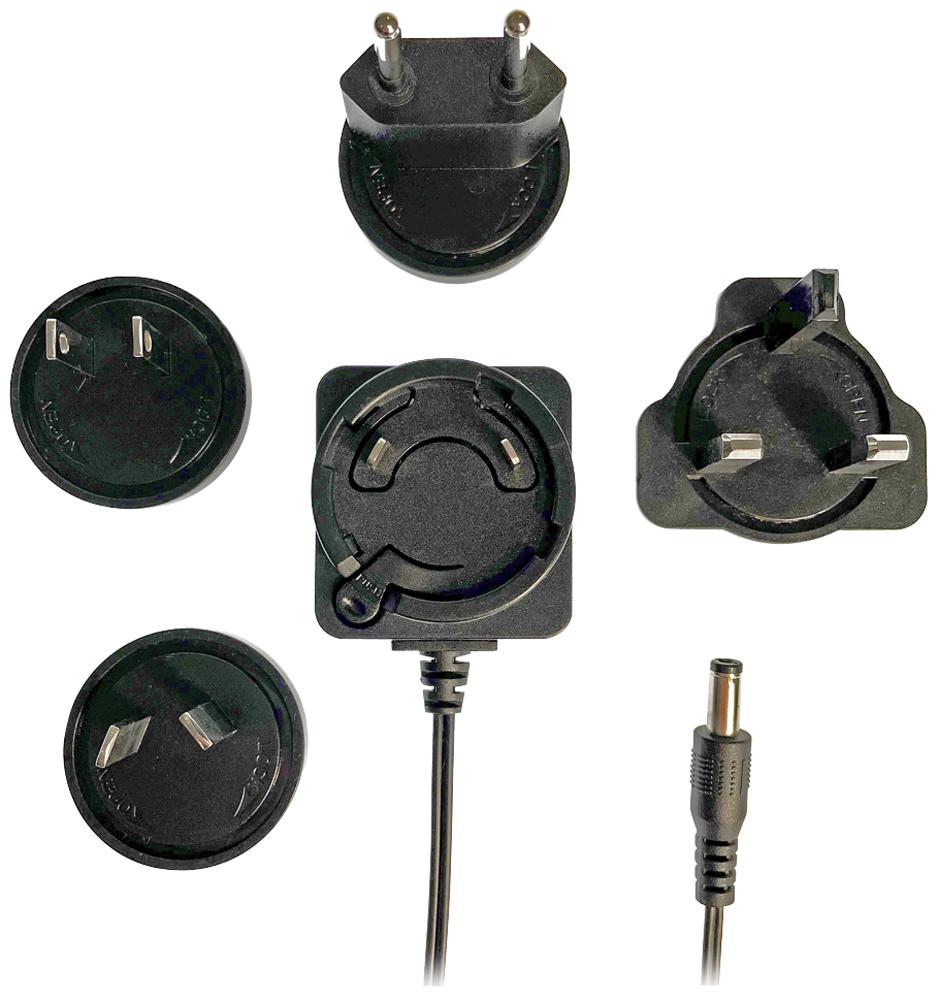

TP1019 is a switch mode international power supply. This features full safety approvals to latest 62368-1 standards and also level VI energy efficiency requirements. This model provides a reliable constant voltage output at up to 6W continuous, suitable for a wide range of applications. It includes short circuit and overcurrent protection.
- Input voltage range from 100 to 240V AC (90 to 264V AC max.), output voltage is 12V DC
- Input frequency range from 47 to 63Hz, current is 0.5A, efficiency is 88%
- 1.5 metres DC cord length, 2.1 x 5.5 x 12mm DC connector, Polarity is +ve (positive) centre
- 0.1W max. standby power consumption, + / - 5% load regulation, quality and reliability
- Supplied complete with 4 interchangeable AC pins
- Operating temperature range from 0°C to 40°C
- Level VI efficiency
- Dimension is 43.6 x 40.9 x 22.0mm
- UK type G, Euro type C, US type A and AUS type I mains plugs
- Multihead power supply as used in the UK, Europe, US, AUS/NZ and many other countries
Product details
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TIGER POWER SUPPLIES |
| Part Number |
TP1019 |
| Quantity |
Each |
| Technical Data Sheet (571.77KB) EN |
View or download |
