Product Overview

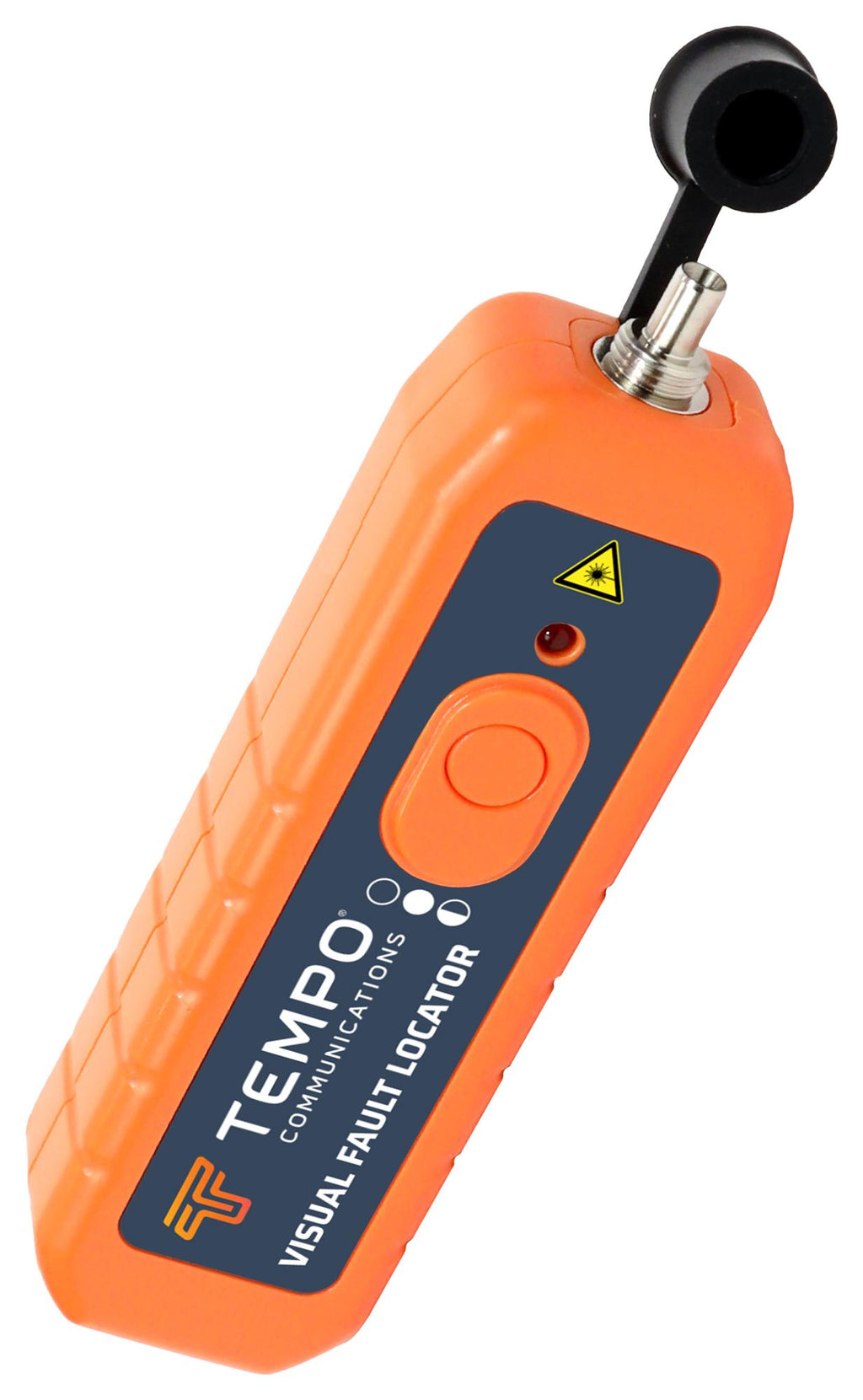

500XL is a visual fault locator that allows the technician to quickly and safely visually locate broken and pinched fibres, faulty connectors, and bad splices. The long 10km reach of the 500XL allows the technician to confirm fibre continuity.
- 5mW maximum output power
- Class 3R laser classification
- 650nm wavelength

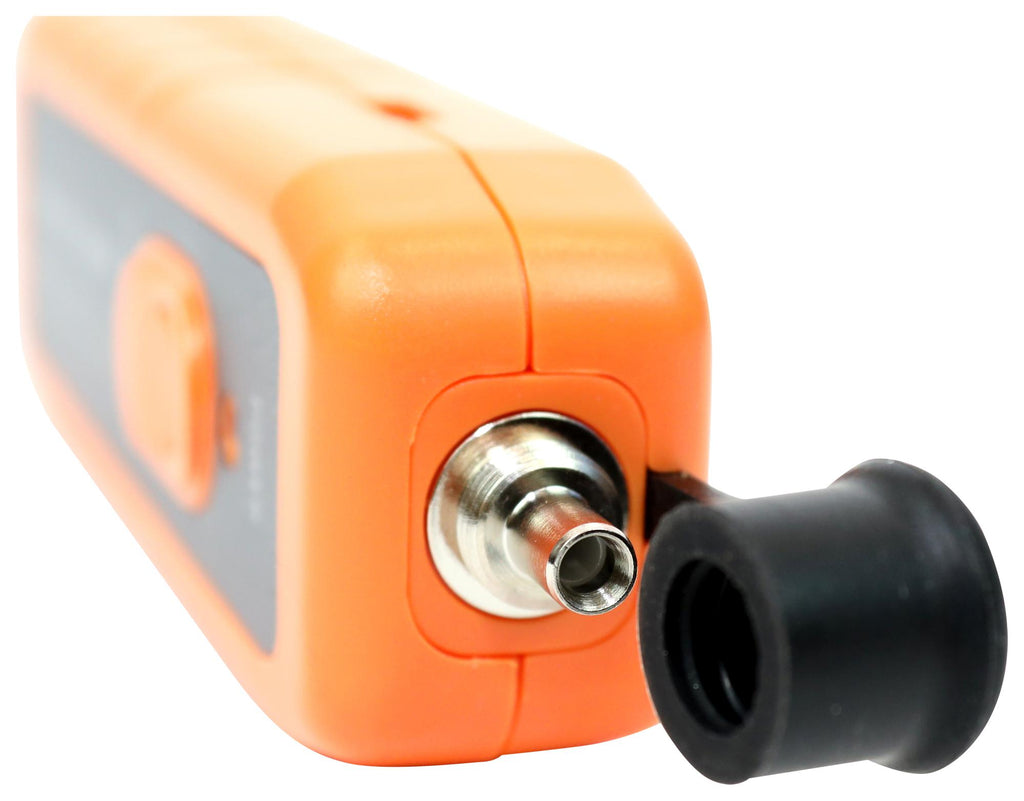

- Universal 2.5mm bulkhead and optional 1.25mm adapter available
- Compatible with single mode and multimode fibres
- Powered by 2 AAA batteries not included
- Dimension is 4.3 x 1.1 x 0.67” (110 x 28 x 17mm)
- Operating temperature range from -10°C to +50°C
Product details
| Tester Type |
Network Cable Tester |
| External Height |
110mm |
| External Depth |
17mm |
| SVHC |
No SVHC (04-Feb-2026) |
| Resistance |
- |
| External Width |
28mm |
| Product Range |
- |
Other details
| Brand |
TEMPO |
| Part Number |
500XL |
| Quantity |
Each |
| Technical Data Sheet (884.16KB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
