Description
Product Overview

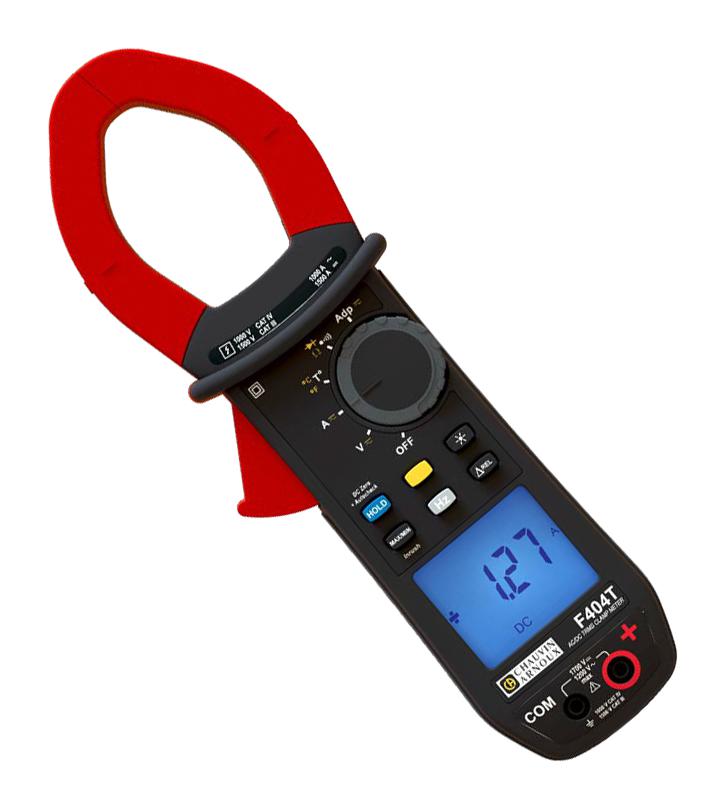

P01120948 is a F404T AC-DC photovoltaic clamp meter. It is a versatile 2-in-1 measuring instrument designed for both electrical and solar photovoltaic (PV) applications. It is built to deliver reliable performance and is suitable for a wide range of testing and maintenance tasks. In addition to its standard measurement capabilities, the meter includes practical features that make fieldwork easier by helping users compare readings, monitor changes, and quickly assess system performance. Its user-friendly design and enhanced diagnostic functions make it a valuable tool for technicians performing installation, inspection, maintenance, and troubleshooting of electrical and PV systems.
- Backlit LCD display with 10,000 points resolution
- 1000V CAT IV / 1500V CAT III safety rating
- IP54 protection rating
- 48mm clamping diameter
- Dimension is 92 × 272 × 41 mm
- Powered by 4 x 1.5V AA battery
Contents
F404T AC/DC photovoltaic clamp meter, 1 set of PVC cables with a Ø4 mm male banana plug (angled) and a Ø4 mm male banana plug (straight), 1 set of 2 test probes/insulated female plug Ø4mm (CAT IV 1000V - CAT III 1500V 15A, dual-material), 1 set of PVC cables with male banana plugs Ø4 mm/MC4 M/F type, 1 thermocouple wire with insulated Ø4 mm banana connectors, 19mm centre-to-centre spacing, 4 x 1.5V AA alkaline batteries, 1 paper quick start guide in 5 languages, 1 pre-fitted MultiFix bag.
Product details
| DMM Functions | AC/DC Current, AC/DC Voltage, Continuity, Diode, Frequency, Resistance, Temperature |
| Voltage Measure AC Max | 1.2kV |
| Resistance Measure Max | 99.99kohm |
| Range Selection | Auto |
| Jaw Opening Max | 48mm |
| SVHC | No SVHC (04-Feb-2026) |
| Current Measure AC Max | 1kA |
| Voltage Measure DC Max | 1.7kV |
| DMM Response Type | True RMS |
| No. of Digits | - |
| Product Range | F404T Series |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01120948 |
| Quantity | Each |
| Technical Data Sheet (771.88KB) EN | View or download |
| User Manual (9.27MB) EN | View or download |
