Product Overview

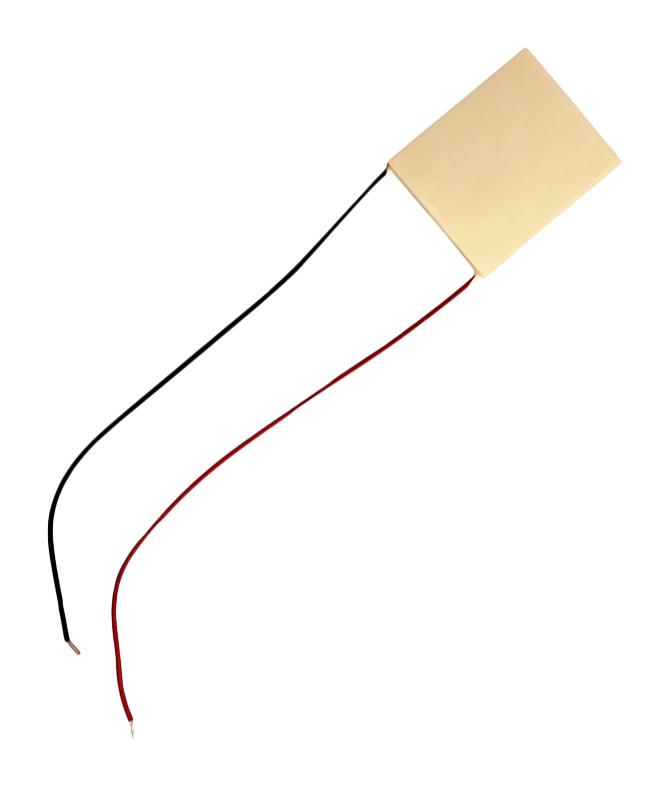

ATS-TEC40-35-005 is a thermoelectric module (TEC module). The thermoelectric device is a semiconductor heater or refrigeration unit that uses the Peltier effect to create a heat flux between the two surfaces of the module. The typical thermoelectric module is manufactured using two thin ceramic wafers with a series of P and N-doped bismuth-telluride semiconductor material elements sandwiched between them. Typical applications include thermal management, laboratory testing, laser diodes, refrigerators, telecom equipment, and biomedical equipment.
- Medium to small form factors (10x10 to 50x50mm (1.96"))
- Thin form factor (3.3 to 4.7mm (0.18"))
- Customizable shapes to suit different applications
- 8A max current at max diff temperature
- 15.4V max voltage at max diff temperature
- 68.8W cooling power
- 1.51ohm±10% internal resistance
- 68°C max temperature difference
- 40mm (1.57") length, 40mm (1.57") width, 3.5mm (0.13") height
- 100mm (3.93") wire length
Product details
| Module Type |
Thermoelectric Cooler |
| Cooling Power Pc |
68.8W |
| Voltage Max @ Diff Temperature Max |
15.4V |
| Width |
40mm |
| Temperature Difference Max |
68°C |
| Internal Resistance |
1.51ohm |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Stages |
1 Stage |
| Current Max @ Diff Temperature Max |
8A |
| Length |
40mm |
| Depth |
3.5mm |
| Product Range |
TEC Series |
| Lead Wires |
100mm 20 AWG Red & Black |
Other details
| Brand |
ADVANCED THERMAL SOLUTIONS |
| Part Number |
ATS-TEC40-35-005 |
| Quantity |
Each |
| Technical Data Sheet (589.48KB) EN |
View or download |
