Product Overview

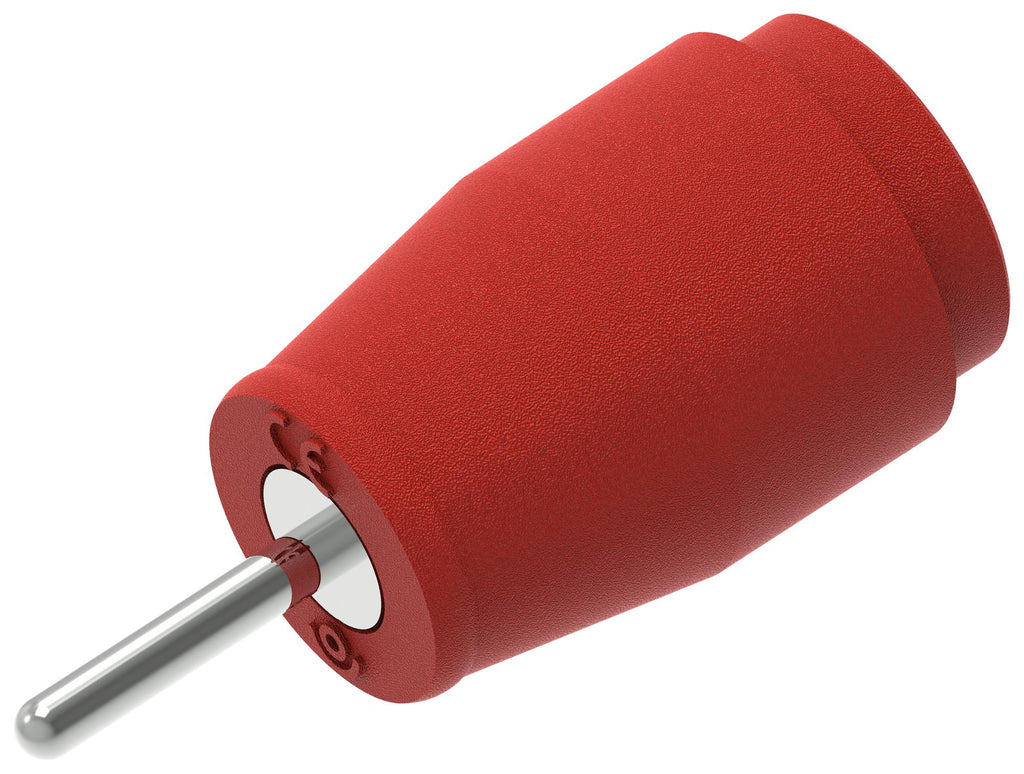

CT3149-2 is a 4mm sheathed banana jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000V CAT III. Designed for vertical printed circuit mounting from the rear of the panel.
- Mounting is with 1.9mm diameter x 12mm short pin for insertion into a PCB
- Red polyamide (nylon) body, brass with nickel plated jack
- 25A maximum current rating
- 0.118" (3mm) panel thickness
- Maximum resistance is less than 5mohm
- Temperature range from -20° to +80°C
Product details
| Gender |
Jack |
| Current Rating |
25A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass |
| Product Range |
- |
| Connector Mounting |
PCB Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Red |
| Contact Termination Type |
Solder |
| SVHC |
No SVHC (04-Feb-2026) |
