Product Overview

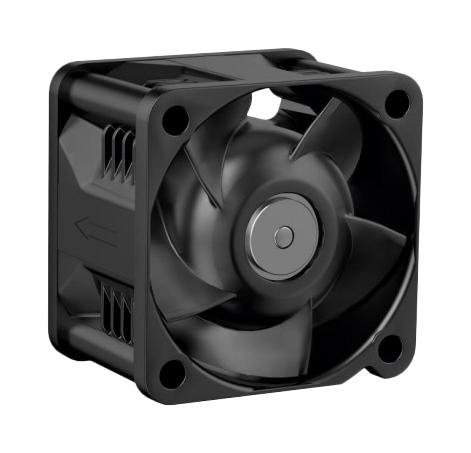

8315100480 is an AxiForce 40, DC axial fan. This AxiForce is the latest generation of compact axial fan from ebm-papst. AxiForce 40 delivers outstanding cooling performance in the smallest. This makes it the ideal solution for a wide range of applications. It is approved by DIN EN 62368, UL507, CSA C22.2 Nr. 113, EAC, UKCA.
- Plastic (PBT) housing and impeller
- Motor concept with optimized noise levels and efficiency
- Power electronics with optimized efficiency
- Direction of air flow: exhaust over struts
- Direction of rotation: counterclockwise, looking towards rotor
- Can be installed in any position
- Operating mode: continuous operation (S1)
- Square fan frame type, ball bearing
- 24V nominal voltage, 7.8W power rating
- 55dB(A) sound pressure level at free air flow, measured in rubber bands, 19000rpm speed
Product details
| Supply Voltage VDC |
24V |
| Fan Frame Size |
40mm |
| Bearing Type |
Ball Bearing |
| Noise Rating |
55dBA |
| Rated Speed |
19000rpm |
| Current Rating |
330mA |
| Air Flow - m3/min |
0.65m³/min |
| Product Range |
AxiForce40 Series |
| Fan Frame Type |
Square |
| External Depth |
28mm |
| Air Flow - CFM |
23CFM |
| Power Rating |
7.8W |
| Power Connection Type |
2 Lead Wires |
| IP Rating |
IP20 |
| Static Pressure |
775Pa |
| SVHC |
No SVHC (04-Feb-2026) |
