Product Overview

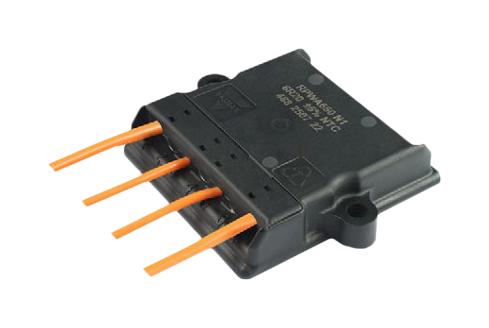

RPWA650R110R0JB is a RPWA 650 series power resistor based on wire thick film technology (resistor only configuration). It is suitable for applications such as precharge, discharge and active discharge, power conversion and snubber.
- 10 ohm resistance value, 5% tolerance
- ±150ppm/°C temperature coefficient
- 1500V DC (1000V AC) maximum operating voltage, ≥ 10Gohm at 1000V DC insulation
- Technology: thick film deposited on ceramic
- Cooled by auxiliary heatsink (not supplied), cold system without external radiation
- High power of 650W at 85°C bottom case temperature
- Non-inductive, low profile
- Easy assembly, self-calibrated pressure
- Material complies with the standard UL 94 V-0
- Operating temperature range from -55°C to +155°C (resistor body)
Product details
| Resistance |
10ohm |
| Power Rating |
650W |
| Resistor Type |
High Power |
| Temperature Coefficient |
± 150ppm/°C |
| Product Length |
66.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Resistance Tolerance |
± 5% |
| Resistor Technology |
Thick Film |
| Product Range |
RPWA 650 Series |
| Voltage Rating |
1.5kV |
| Product Width |
58mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
VISHAY |
| Part Number |
RPWA650R110R0JB |
| Quantity |
Each |
| Technical Data Sheet (175.31KB) EN |
View or download |
