Product Overview

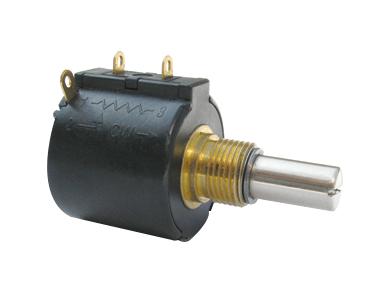

BOURNS 3549S-1AA-101A Rotary Potentiometer, 100 ohm, 10 Turns, Linear, 2 W, ± 3%, 3549 Series
Product details
| Track Resistance |
100ohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 3% |
| Potentiometer Mounting |
Bushing Mount |
| No. of Gangs |
1 |
| Shaft Length |
12.7mm |
| Potentiometer Type |
Precision |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
40.45mm |
| Product Height |
- |
| Operating Temperature Max |
125°C |
| No. of Turns |
10Turns |
| Power Rating |
2W |
| Product Range |
3549 Series |
| Shaft Diameter |
6.34mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
± 50ppm/°C |
| Resistor Technology |
Wirewound |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
BOURNS |
| Part Number |
3549S-1AA-101A |
| Quantity |
Each |
| Technical Data Sheet (69.00B) EN |
View or download |
