Product Overview

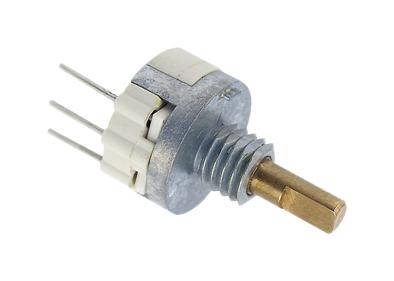

BOURNS 39SB-1RB-103 Rotary Potentiometer, Panel Control, 10 kohm, 1 Turns, Linear, 250 mW, ± 20%, 39 Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 20% |
| Potentiometer Mounting |
Through Hole |
| No. of Gangs |
1 |
| Shaft Length |
12.7mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
PC Pin |
| Product Length |
19.71mm |
| Product Height |
- |
| Operating Temperature Max |
85°C |
| No. of Turns |
1Turns |
| Power Rating |
250mW |
| Product Range |
39 Series |
| Shaft Diameter |
3.18mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
- |
| Resistor Technology |
Conductive Plastic |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-40°C |
| SVHC |
No SVHC (04-Feb-2026) |
