Product Overview

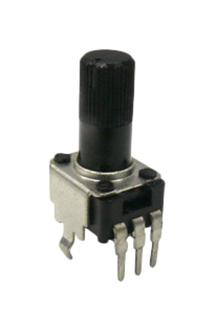

BOURNS PTV09A-4020U-B103 Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 50 mW, ± 20%, PTV09 Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 20% |
| Potentiometer Mounting |
Through Hole |
| No. of Gangs |
1 |
| Shaft Length |
20mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
PC Pin |
| Product Length |
23.8mm |
| Product Height |
11mm |
| Operating Temperature Max |
50°C |
| No. of Turns |
1Turns |
| Power Rating |
50mW |
| Product Range |
PTV09 Series |
| Shaft Diameter |
6mm |
| Adjustment Type |
Rotary |
| Temperature Coefficient |
- |
| Resistor Technology |
Carbon |
| Resistor Case / Package |
- |
| Product Width |
10mm |
| Operating Temperature Min |
-10°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
BOURNS |
| Part Number |
PTV09A-4020U-B103 |
| Quantity |
Each |
| Technical Data Sheet (71.00B) EN |
View or download |
