Product Overview

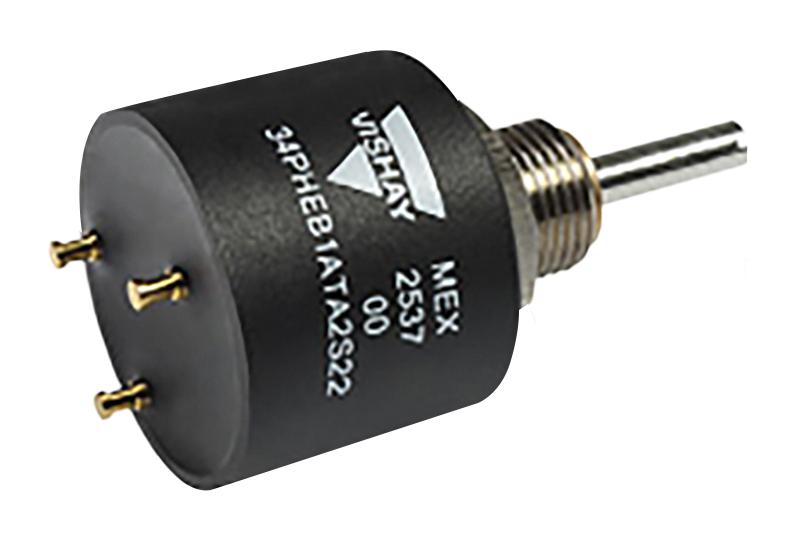

VISHAY 34PHEB2ATA2S22 Rotary Position Sensor, 3600° Rotation Angle, Non-Contact, ± 1%, Turret, Ratiometric, 5VDC
Product details
| Sensor Type |
Hall-Effect Sensor |
| Shaft Type |
Slotted End |
| Electrical Angle |
3600° |
| Supply Voltage |
5VDC |
| Output Signal |
Ratiometric |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Output Type |
Turret |
| Contact Type |
Non-Contact |
| Linearity |
± 1% |
| Supply Current |
17mA |
| Operating Temperature Min |
-40°C |
| Product Range |
34PHE Series |
Other details
| Brand |
VISHAY |
| Part Number |
34PHEB2ATA2S22 |
| Quantity |
Each |
| Technical Data Sheet (125.62KB) EN |
View or download |
