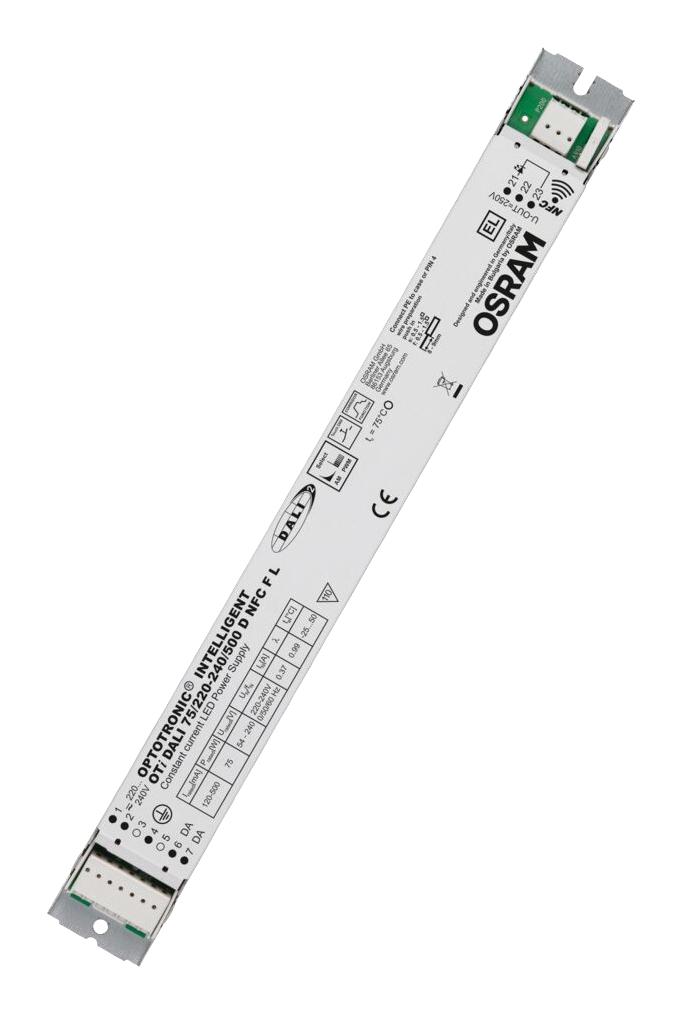

Product Overview
OTi-DALI-75/220-240/500-D-NFC-F-L is ideal for office lighting, education, industry, storage areas and retail applications. A fully programmable linear power solution with DALI interface. With high quality dimming of 1 to 100% by amplitude dimming. Current setting is flexible thanks to LEDset2. Providing users with very high efficiency and very low standby power consumption (<0.25W). The OTI DALI LED drivers help fulfil user safety requirements due to overload, overtemperature, and hot plug protection.
- 0Hz/50Hz/60Hz line frequency
- Versatile DALI window driver up to 75W due to flexible output characteristic
- Supply voltage range from 220V to 240V
- Available with output current range up to 500 mA
- DALI-2 certified (Part -101,-102 and -207)
- Monitoring of luminaire operating parameters
- Constant lumen output (CLO)
- Non-isolated drivers
- Flat housing (16 mm height) for innovative luminaire designs and applications
- Fully programmable via software (DALI Interface, NFC)
Product details
| Power Supply Applications |
LED Lighting |
| Output Voltage Max |
240V |
| LED Driver Mode |
Constant Current |
| Input Voltage Max |
264V |
| SVHC |
No SVHC (04-Feb-2026) |
| Output Power Max |
75W |
| Output Current |
500mA |
| Input Voltage Min |
198V |
| Product Range |
OPTOTRONIC Intelligent Flat - DALI (Non-Isolated) Series |
Other details
| Brand |
INVENTRONICS |
| Part Number |
OTI-DALI-75/220-240/500-D-NFC-F-L |
| Quantity |
Each |
| Technical Data Sheet (419.71KB) EN |
View or download |
