Description
Product Overview

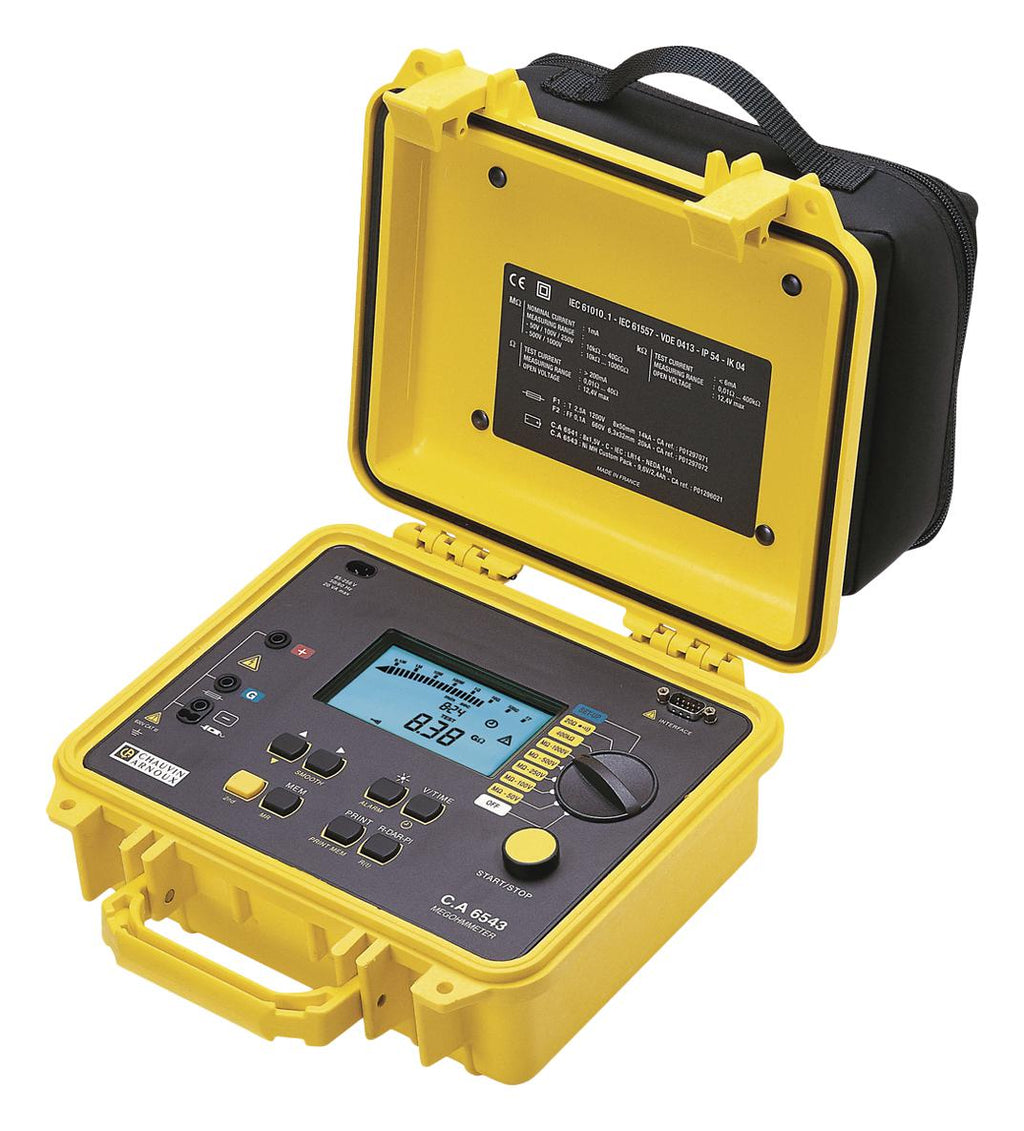

P01138902 is a CA 6543 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis.
- Insulation up to 4Tohm (5 ranges) at 50/100/250/500 and 1,000V DC
- Automatic calculation of insulation quality ratios: DAR and PI
- Programmable test duration and plotting of the R(t) curve
- Automatic indication of voltage before and after measurement: 1 to 1,000V AC/DC
- Resistance: 0.01ohm to 400kohm, continuity: 0.01ohm to +40 ohm (audible beep and cable compensation)
- Automatic capacitance measurement after each insulation measurement: 0.005 to 4.999µF
- Microprocessor-controlled, storage of measurements (128kB), bi-directional RS232
- Large LCD screen with digital display and bargraph, backlighting, SMOOTH function
- Electrical safety: IEC 61010 600V CAT III and IEC 61557, IP54 rated
- Dimension is 240 x 185 x 110mm
Contents
CA 6543 insulation tester, 2 x 1.5m safety leads (red/blue), 1 x 1.5m guarded safety lead (black), 3 x crocodile clips (red/blue/black), 1 x test probe (black), 1 x 2-sided condensed user’s manual, 1 x user’s manual, 8 x LR14 batteries (for C.A 6541), 1 x 2m mains lead (for C.A 6543).
Product details
| Insulation Tester Type | Digital Megohmmeter |
| Insulation Testing Resistance | 2kohm to 4Tohm |
| Operating Temperature Max | 55°C |
| External Width | 185mm |
| Weight | 3.4kg |
| SVHC | No SVHC (04-Feb-2026) |
| Insulation Testing Voltage | 50V, 100V, 250V, 500V, 1kV |
| Operating Temperature Min | -10°C |
| External Height | 110mm |
| External Depth | 240mm |
| Product Range | - |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01138902 |
| Quantity | Each |
| Technical Data Sheet (23.42MB) EN | View or download |
