Description
Product Overview

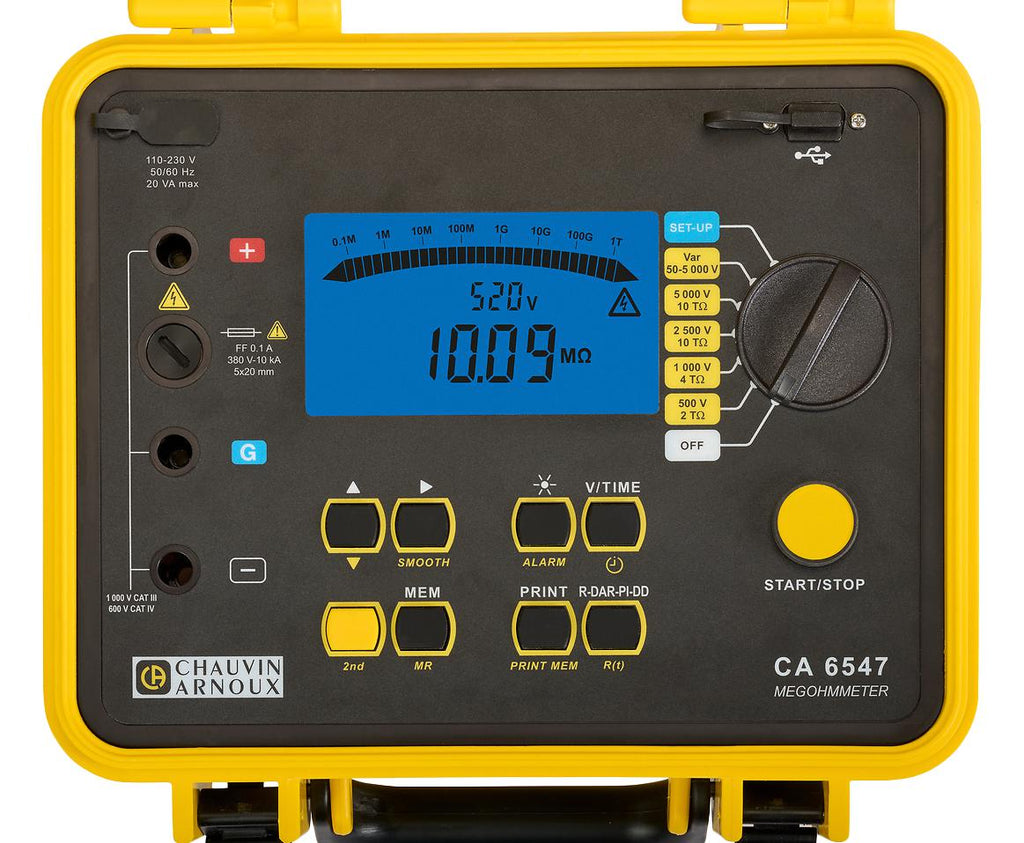

P01139712 is a CA 6547 megohmmeter. In its site-proof case, the CA 6547 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current. In addition, this model offers storage of measurements and an USB link for controlling the instrument and processing the data using Megohmmeter software.
- Measurement range from 10kohm to 10Tohm
- 4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000V
- Adjustable test voltage position: 40 to 5,100V in 10V or 100V increments
- Large backlit LCD screen with digital display and bargraph
- Automatically calculates DAR, PI, and DD ratios with R(t) curve plotting for insulation analysis
- Programmable test duration, test voltage locking, smooth function, programmable alarms
- Storage of several thousand measurements
- USB connectivity supports PC software integration and compact serial printer connection
- NiMH rechargeable battery delivers up to 30 days of operation with daily DAR and PI testing
- Dimension is 270 x 250 x 180mm
Contents
CA 6547 5KV digital insulation tester, 2 x HV safety leads(one red and one blue, length 3m, equipped with an HV plug at one end and an HV crocodile clip at the other end), 1 x black guarded HV safety lead (length 3m), 1 x blue guarded HV safety lead (length 0.35m), 1 x mains power cable 1.80m long, 8 x simplified user’s manuals (CA 6547), 1 x USB drive containing the user’s manuals and MEG application software, 1 x USB-A / USB-B cable.
Product details
| Insulation Tester Type | Digital Megohmmeter |
| Insulation Testing Resistance | 10kohm to 10Tohm |
| Operating Temperature Max | 55°C |
| External Width | 250mm |
| Weight | 4.3kg |
| SVHC | No SVHC (04-Feb-2026) |
| Insulation Testing Voltage | 500V, 1kV, 2.5kV, 5kV |
| Operating Temperature Min | -10°C |
| External Height | 180mm |
| External Depth | 270mm |
| Product Range | - |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01139712 |
| Quantity | Each |
| Technical Data Sheet (1.22MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
