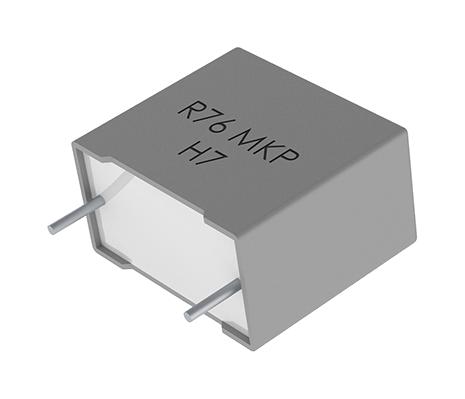

Product Overview
Also known as
76PR36804040J
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.68µF |
| Typical Applications |
High Frequency |
| Voltage(AC) |
400V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
27.5mm |
| Peak Current |
612A |
| ESR |
0.007ohm |
| Product Length |
32mm |
| Product Height |
25mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
630V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
900V/µs |
| RMS Current (Irms) |
10.1A |
| Product Diameter |
- |
| Product Width |
13mm |
| Ripple Current |
400mA |
| Product Range |
R76 Series |
| Operating Temperature Max |
110°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
R76PR36804040J |
| Quantity |
Each |
